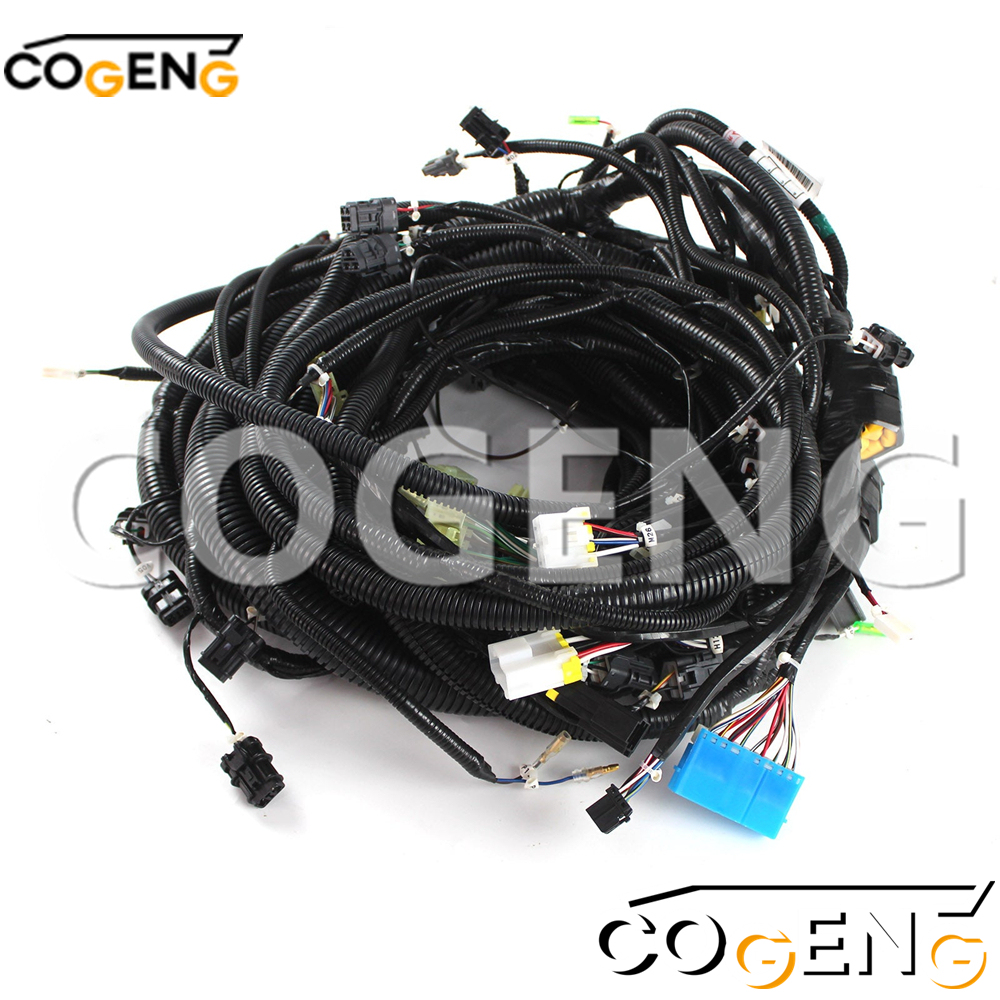

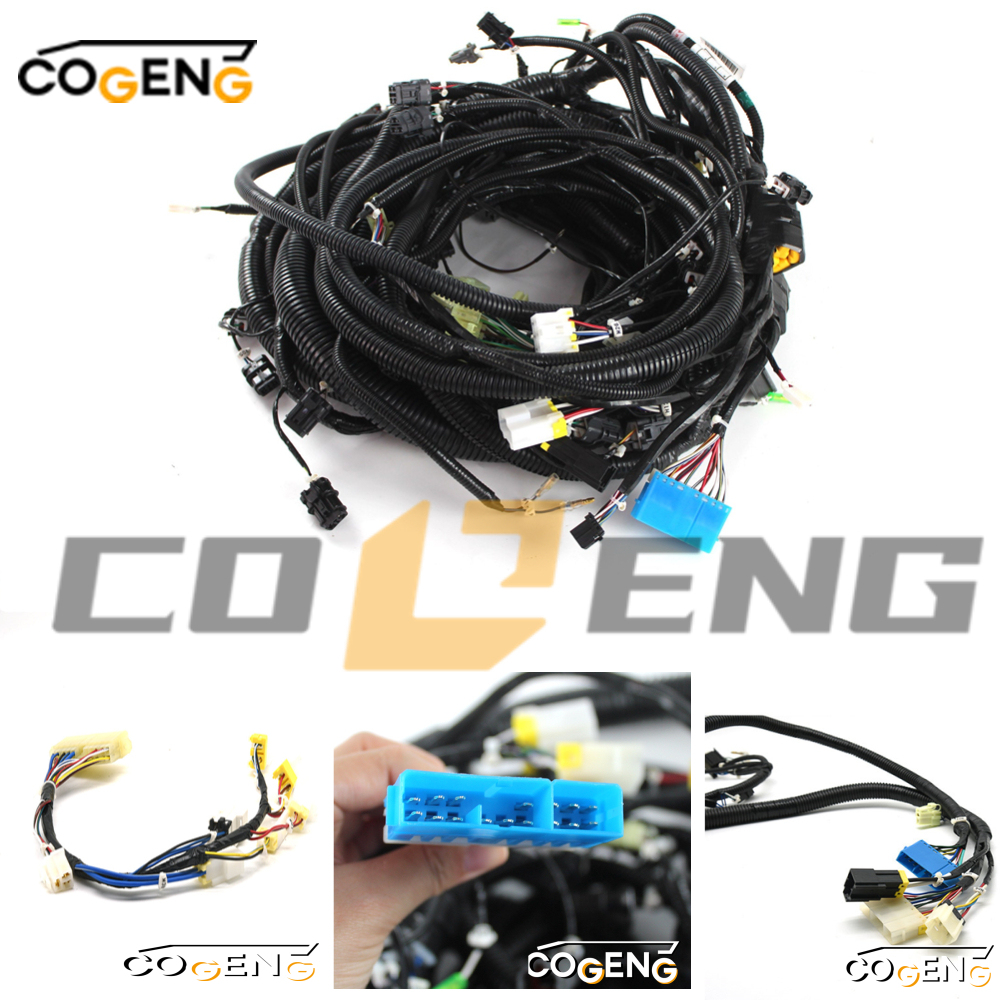

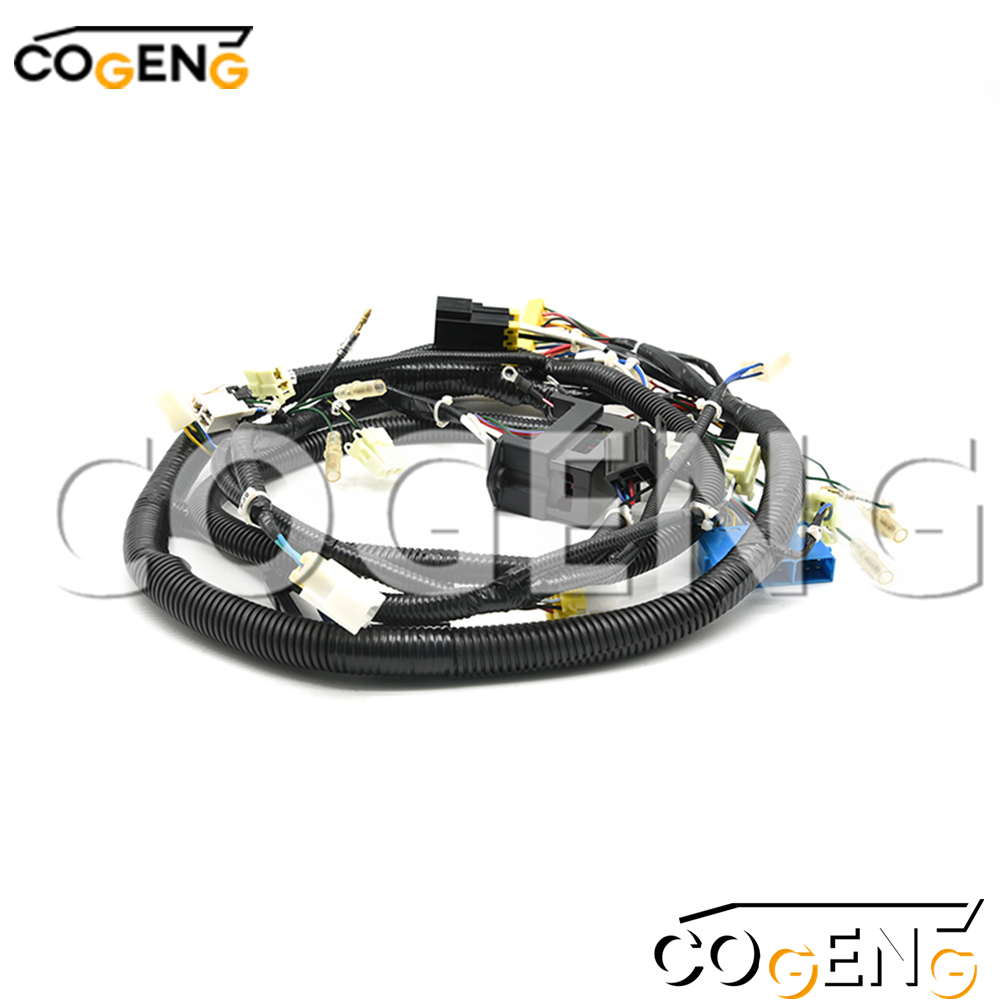

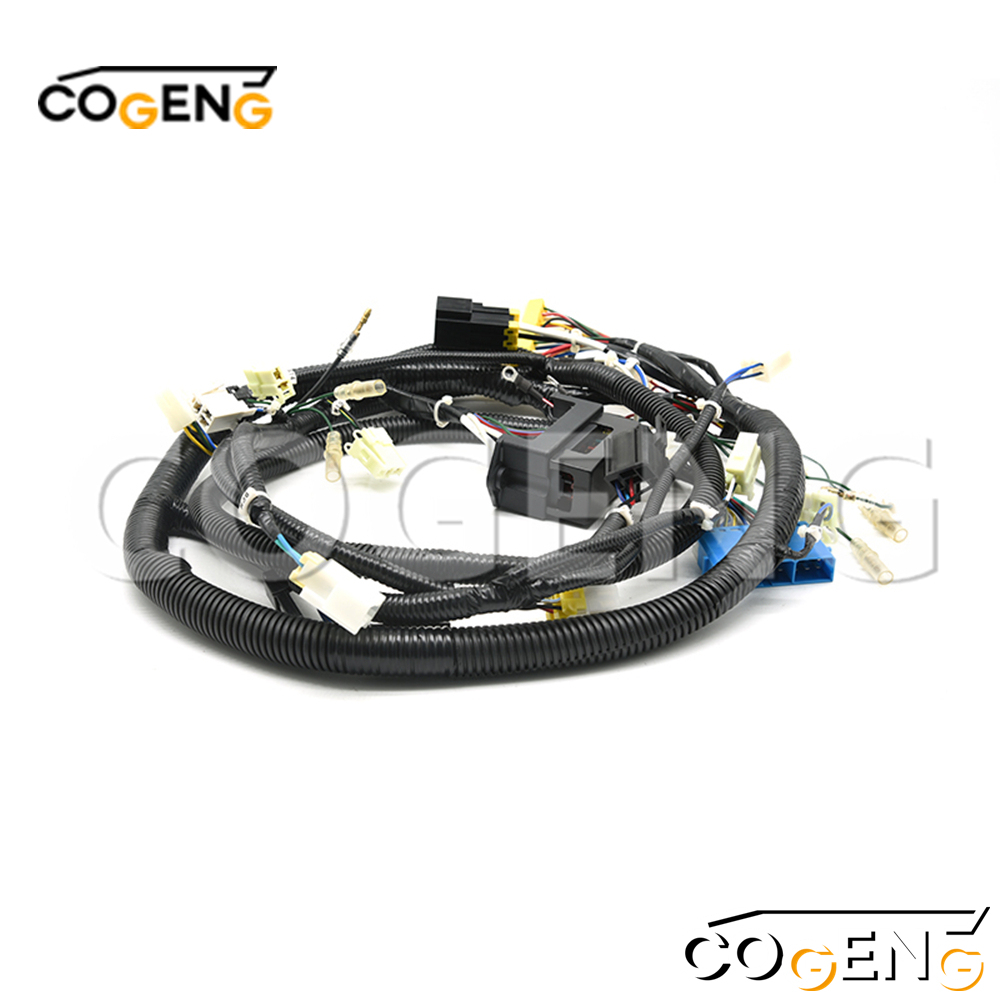

20Y-06-24760 20Y-06-24920 Komatsu Wiring Harness
Product name: Komatsu Wiring Harness
Part No: 20Y-06-24760 20Y-06-24920
Model Number:For PC200-6 PC200-6Z PC200-6-H PC200LC-6H PC210-6 PC210LC-6 PC220-6 PC220LC-6 PC230-6 PC230LC-6 PC400-6 PC400LC-6Z PC450-6Z
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Decompose pictures
Here are some additional details about
(1) Function: 20Y-06-24760 and 20Y-06-24920 Komatsu electrical wiring harnesses are used to connect electrical components into the electrical system of a vehicle or machine. They carry and protect wires, connectors and related components, ensuring the transmission of electrical signals and the proper functioning of circuits.
(2) Application: These wire harnesses are commonly used in various equipment and machinery of the Komatsu brand, including excavators, loaders, bulldozers, etc. They are responsible for connecting and powering various electrical devices such as lights, sensors, controllers, instrument panels, etc.
(3) Construction and Features: 20Y-06-24760 and 20Y-06-24920 Komatsu electrical wiring harnesses use high-quality wires and connectors that are precisely arranged and tied to ensure reliability and durability. Their construction and wiring vary depending on the specific application needs and electrical system design.
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
201-43-71131 |
LEVER,L.H. |
1 |
| 2 |
20T-43-71110 |
KNOB |
1 |
| 3 |
20T-43-71190 |
NUT |
1 |
| 4 |
01010-81030 |
BOLT |
1 |
| 5 |
01643-31032 |
WASHER |
1 |
| 6 |
20T-43-71160 |
BOOT |
1 |
| 7 |
201-54-73281 |
CONSOLE BOX |
1 |
| 8 |
20T-54-71570 |
BOLT |
2 |
| 9 |
20T-54-71550 |
BOLT |
2 |
| 10 |
01643-70823 |
WASHER |
4 |
| 11 |
201-06-71440 |
SWITCH |
1 |
| 12 |
201-06-71230 |
SWITCH |
1 |
| 13 |
201-54-73410 |
COVER |
3 |
| 14 |
201-54-73291 |
COVER |
1 |
| 15 |
20Y-06-24920 |
WIRING HARNESS |
1 |
| 20Y-06-24760 |
WIRING HARNESS |
1 |
| 16 |
20Y-06-21720 |
RADIO,(AM) |
1 |
| 17 |
201-54-73440 |
BRACKET |
2 |
| 18 |
01220-40510 |
SCREW |
6 |
| 19 |
01641-20508 |
WASHER |
6 |
| 20 |
08912-51600 |
CORD |
1 |
| 21 |
08036-01814 |
CLIP |
3 |
| 22 |
08036-01014 |
CLIP |
1 |
| 23 |
01010-81020 |
BOLT |
3 |
| 24 |
01643-31032 |
WASHER |
3 |
| 25 |
08051-00801 |
CLIP |
1 |
Installation decomposition diagram
