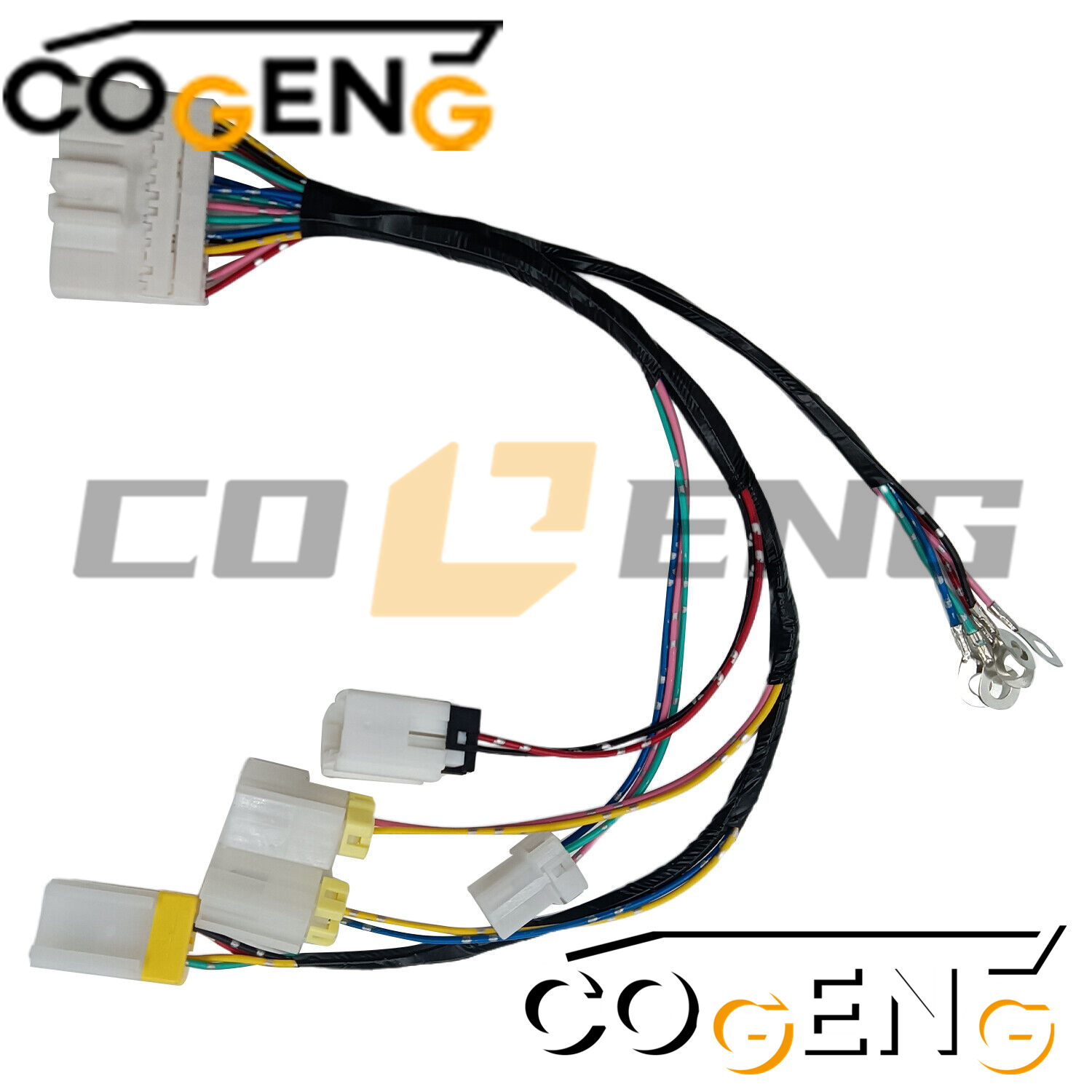

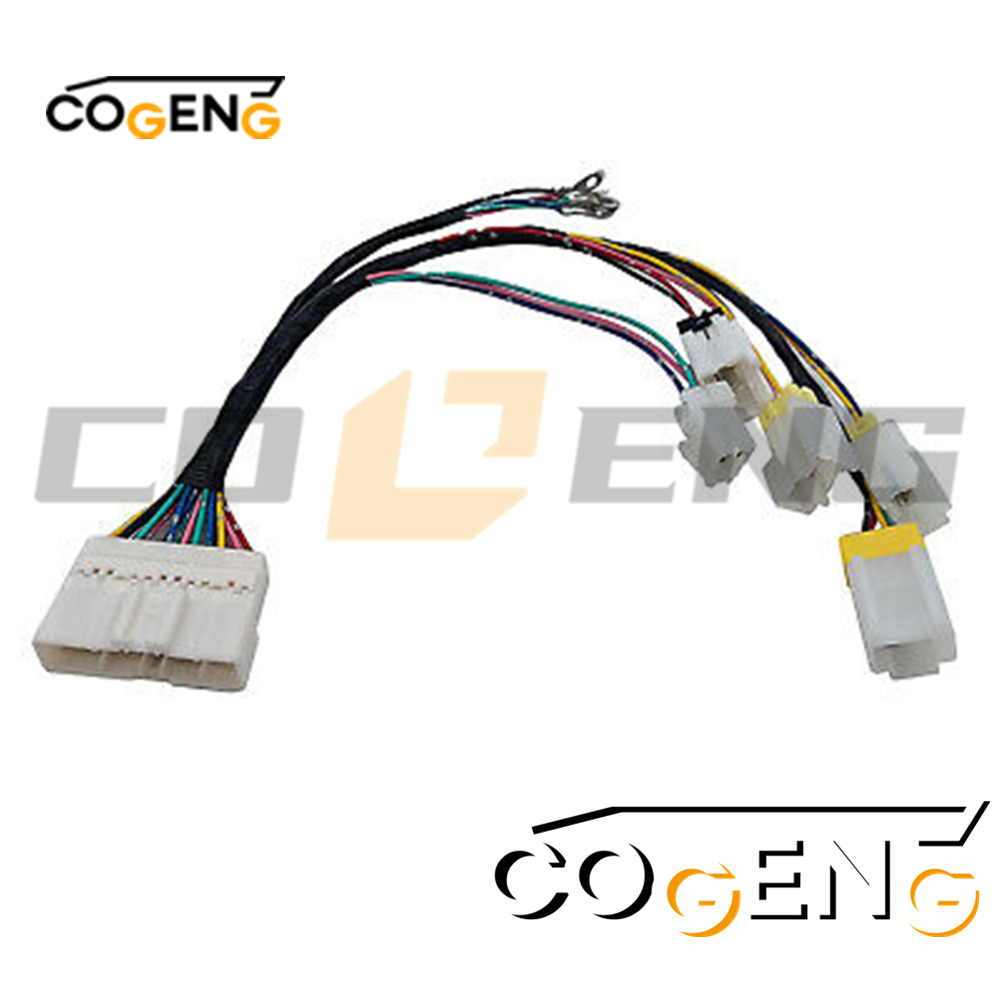

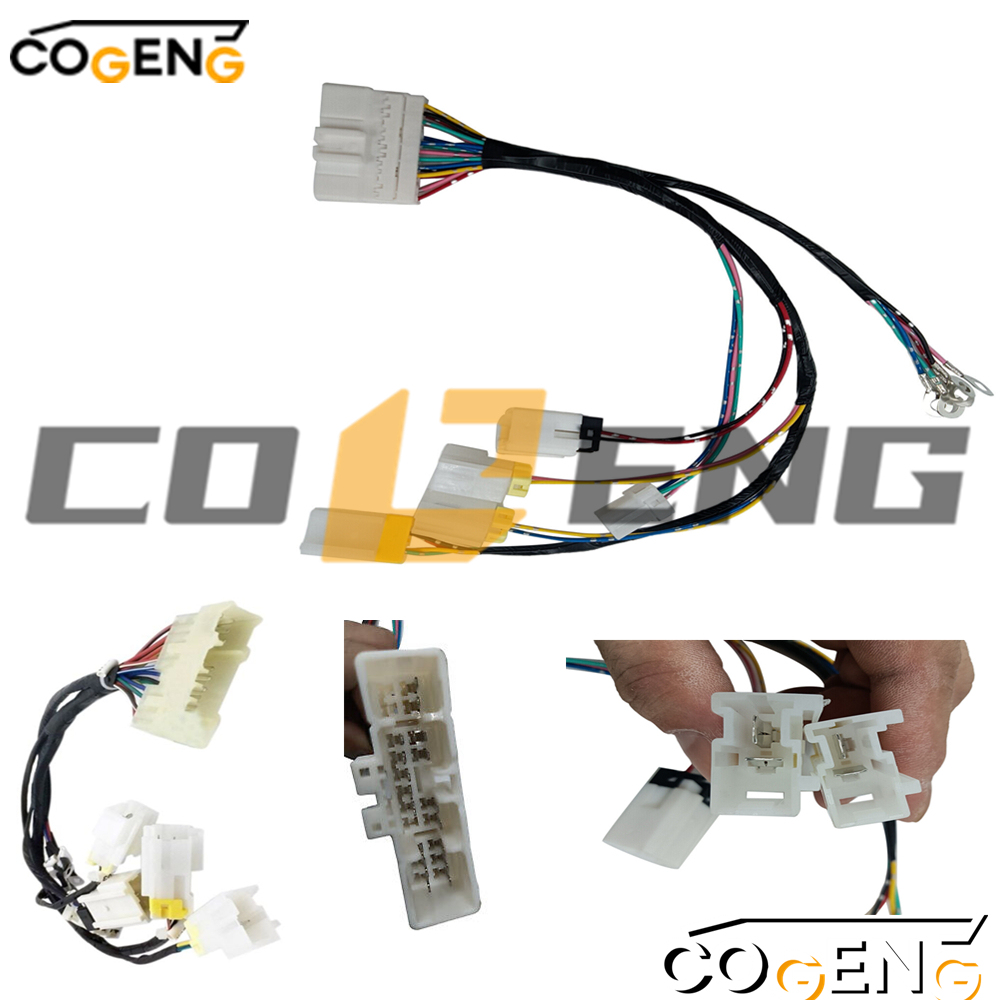

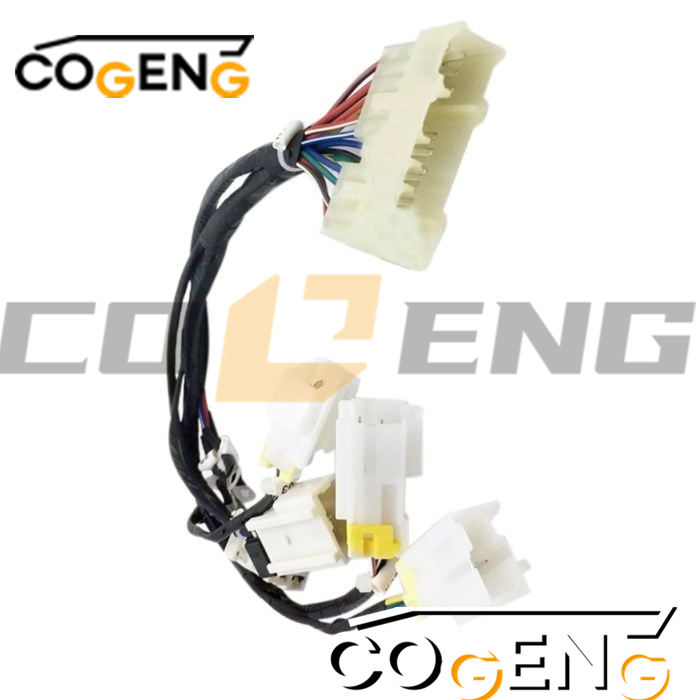

22U-06-22330 Komatsu Wiring Harness
Product name: Komatsu Wiring Harness
Part No: 22U-06-22330 22U-06-22330
Model Number:For PC200-7 PC130-7 PC200LC-7 PC220US-3 PC230-7 PC240LC-7K
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS

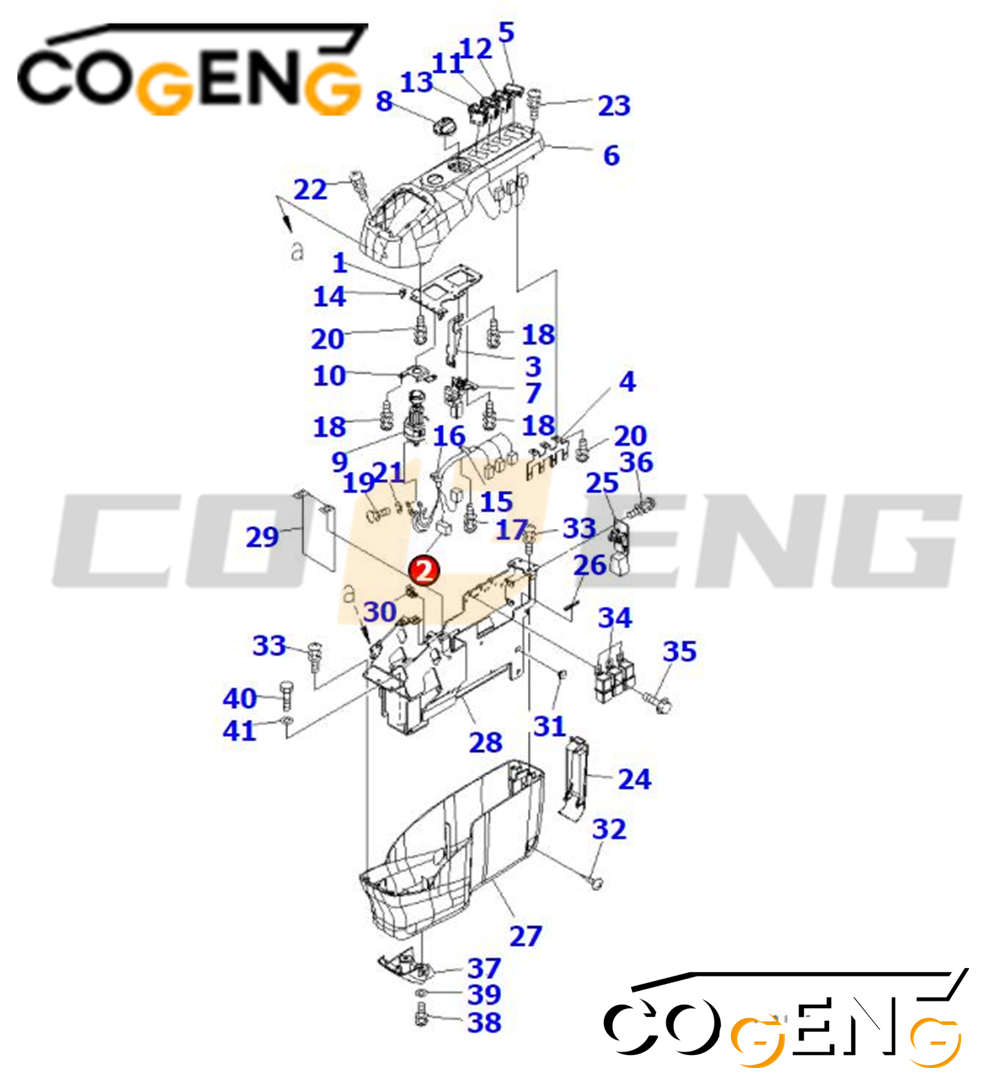

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
22U-43-23110 |
STAY |
1 |
| 2 |
22U-06-22330 |
HARNESS |
1 |
| 3 |
22U-43-23120 |
BRACKET |
1 |
| 4 |
22U-43-23130 |
STAY |
1 |
| 5 |
22U-06-22320 |
COVER |
1 |
| 6 |
22U-43-23140 |
COVER |
1 |
| 7 |
22U-06-22420 |
POTENTIOMETER ASS'Y |
1 |
| 8 |
22U-06-22470 |
KNOB |
1 |
| 9 |
08086-20000 |
SWITCH |
1 |
| 10 |
22U-06-22480 |
PLATE |
1 |
| 11 |
22U-06-22190 |
SWITCH, BUZZER |
1 |
| 12 |
22U-06-22290 |
SWITCH, SWING |
1 |
| 13 |
22U-06-22390 |
SWITCH, LIGHT |
1 |
| 14 |
20Y-06-23770 |
CLIP |
2 |
| 15 |
20Y-06-23920 |
CLAMP |
1 |
| 16 |
08034-10414 |
BAND |
2 |
| 17 |
01023-60410 |
SCREW |
1 |
| 18 |
01023-60512 |
SCREW |
6 |
| 19 |
01023-10508 |
SCREW |
5 |
| 20 |
01023-10512 |
SCREW |
6 |
| 21 |
01601-20513 |
WASHER |
5 |
| 22 |
01023-60620 |
SCREW |
2 |
| 23 |
01023-70514 |
SCREW |
2 |
| 24 |
22U-43-23210 |
COVER |
1 |
| 25 |
20Y-06-31320 |
SWITCH ASS'Y |
1 |
| 26 |
22U-43-23220 |
TRIM |
1 |
| 27 |
22U-43-23230 |
COVER |
1 |
| 28 |
22U-43-23240 |
FRAME |
1 |
| 29 |
22U-43-23250 |
SHEET |
1 |
| 30 |
22U-43-23260 |
CLIP |
1 |
| 31 |
22U-43-23270 |
GROMMET |
2 |
| 32 |
01370-00512 |
SCREW |
2 |
| 33 |
01023-60616 |
SCREW |
4 |
| 34 |
569-06-61960 |
RELAY |
3 |
| 35 |
01435-00612 |
BOLT |
3 |
| 36 |
01023-60410 |
SCREW |
3 |
| 37 |
22U-43-23711 |
COVER |
1 |
| 38 |
01023-10614 |
SCREW |
2 |
| 39 |
01643-30623 |
WASHER |
2 |
| 40 |
01010-81030 |
BOLT |
4 |
| 41 |
01643-31032 |
WASHER |
4 |
Installation decomposition diagram
