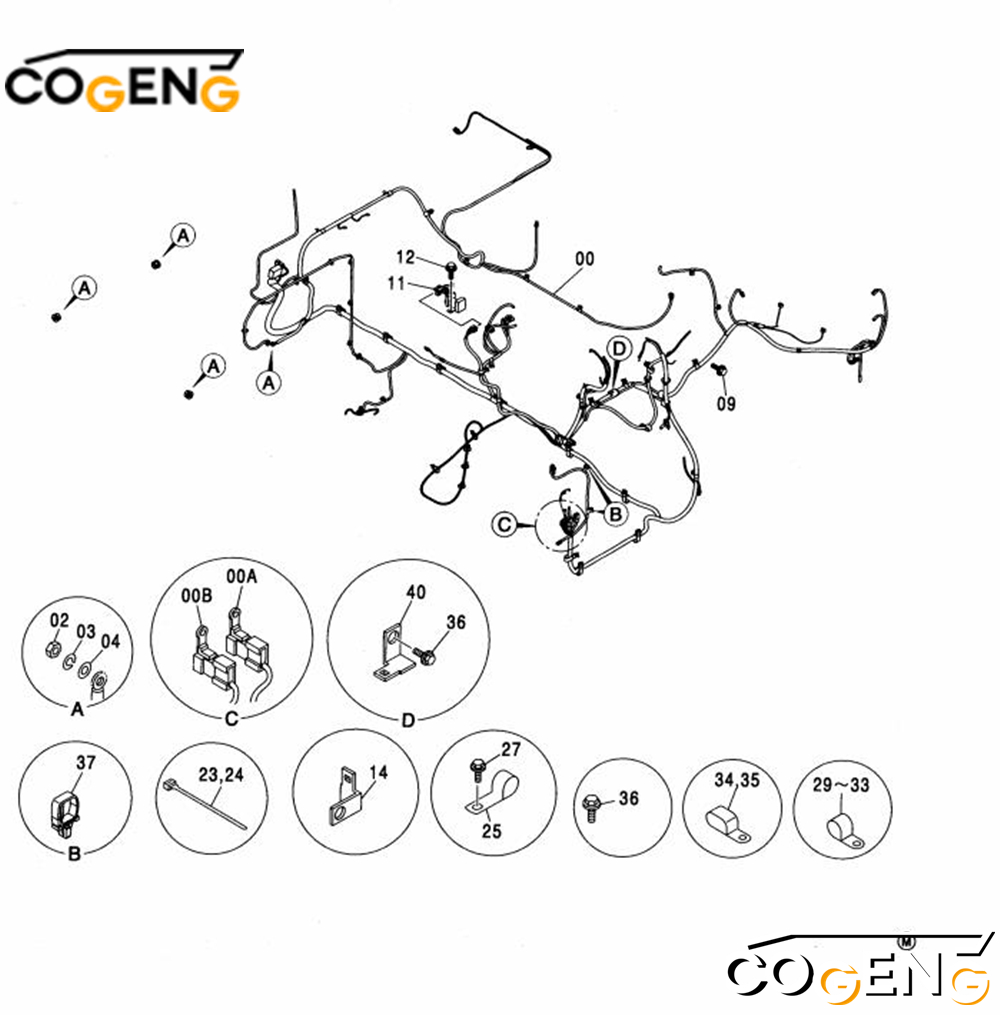

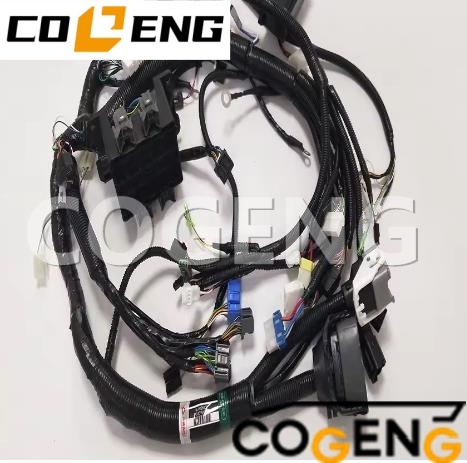

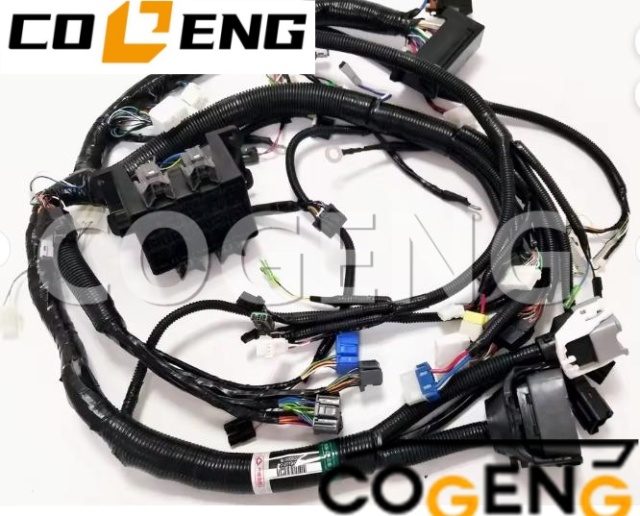

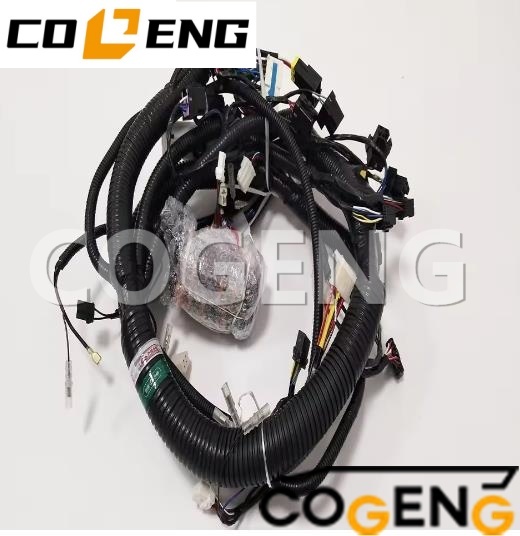

| Parameter | Specification |
|---|---|
| COGENG Part Number | 0001835 |
| OEM Reference | Hitachi 0001835 |
| Harness Type | Main wiring harness / loom (full machine coverage) |
| Wire Gauge Range | 0.3mm² to 16mm² (26 AWG to 6 AWG) |
| High-Current Circuits | 6.0-16mm² (battery, alternator, starter, ground circuits) |
| Control Circuits | 0.5-1.25mm² (sensors, solenoids, switches, relays) |
| Signal Circuits | 0.3-0.5mm² (sensor signals, CAN bus, communications) |
| Number of Circuits | 120-180 circuits (depending on machine configuration) |
| Number of Connectors | 35-50 connectors |
| Connector Types | AMP, Deutsch, Sumitomo, Yazaki, JST, Hitachi-specific |
| Wire Insulation | XLPE (Cross-linked Polyethylene) / PVC / TPE |
| Temperature Range | -40°C to +125°C (-40°F to +257°F) |
| Rated Voltage | 24V DC (12V-32V operating range) |
| Conductor Material | Oxygen-free copper (tinned for corrosion resistance) |
| Terminal Plating | Tin (standard) / Gold (sensor/control circuits) |
| Shielded Circuits | Sensor signals, CAN bus (braided copper shield, 85% coverage) |
| Protective Conduit | Corrugated nylon / PVC loom (heat-shrink sealed ends) |
| Abrasion Protection | Spiral wrap / nylon braid (high-wear zones) |
| Heat Shielding | Reflective aluminum/glass fiber (exhaust proximity zones) |
| Connector Sealing | Weather-pack seals for external connections (IP67) |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | 1,500V AC for 1 minute (no breakdown) |
| Continuity Testing | 100% of circuits verified |
| Vibration Resistance | 10-500 Hz, 2g, 10 hours (no discontinuity) |
| Service Life | 5,000-8,000 hours in typical excavator service |
| Replaces OEM Part Number | 0001835 |
| Brand | COGENG (Direct OEM Replacement) |
| Harness Type | Main Chassis / Frame Wiring Harness |
| Compatible Model | Hitachi EX200-3 Excavator |
| System Coverage | Full Machine Electrical System Renewal |
| Key Feature | OEM-spec routing, connectors, and wire gauge for exact EX200-3 fit |
| Component Category | Specification | Material / Standard |
|---|---|---|
| Engine Control Harness | ECU, injectors, sensors (crank, cam, temp, pressure, oil), alternator, starter | 0.5-2.5mm², high-temperature insulation (engine bay) |
| Pump Control Harness | Main hydraulic pump regulators, pump pressure sensors | 0.5-1.25mm², shielded control lines |
| Main Control Valve Harness | Solenoid valves (boom, arm, bucket, swing, travel) | 0.85-1.25mm², oil-resistant insulation |
| Cab Harness Section | Monitor display, switch panels, joysticks, HVAC, wipers, radio | 0.3-1.25mm², flexible wiring for cab routing |
| Safety System Harness | Seat belt switch, operator presence, travel alarm, backup camera | 0.5-1.25mm², redundant circuits |
| Lighting Harness | Headlights, work lights, cab lights, panel lights, beacons | 1.25-2.5mm², weather-sealed connectors |
| Sensor Harness | Hydraulic oil temperature, coolant temp, fuel level, water in fuel | 0.3-0.85mm², shielded where required |
| Battery & Charging Harness | Battery connections (positive/negative), alternator output, starter motor | 16-50mm², heavy-duty copper lugs |
| Chassis Ground Harness | Engine ground, pump ground, cab ground, frame ground points | 6.0-16mm², corrosion-resistant lugs |
| CAN Bus Network | Machine control network (ECU, pump controller, monitor) | Twisted pair, 120Ω impedance, shielded |
| Relay & Fuse Box Harness | Power distribution to all circuits | 0.5-6.0mm², color-coded by circuit |
| Connector Seals | Weather-pack seals for external connectors | Silicone rubber, IP67 rating |
| Hitachi Model | Series | Application Notes | Compatibility Status |
|---|---|---|---|
| EX200-3 | -3 series | Main wiring harness (full machine) | Direct replacement |
| EX200LC-3 | -3 series (long undercarriage) | Main wiring harness (full machine) | Direct replacement |
| EX200-1 | -1 series | Different architecture | NOT COMPATIBLE |
| EX200-2 | -2 series | Different architecture | NOT COMPATIBLE |
| EX200-5 | -5 series | Different architecture | NOT COMPATIBLE |
| EX220-3 | -3 series | Verify with support | May be compatible |
| EX230-3 | -3 series | Verify with support | May be compatible |
| EX270-3 | -3 series | Different configuration | NOT COMPATIBLE |
| ZX200-3 | -3 series | Different architecture | NOT COMPATIBLE |
| Model | Compatibility Status | Notes |
|---|---|---|
| EX200-3 (Export) | Direct replacement | Export specification verified |
| EX200-3 (Japan Domestic) | Direct replacement | Minor differences possible |
| EX200LC-3 | Direct replacement | Long undercarriage, same harness |
| EX200-3B | Verify with support | Late production may have differences |
| EX200-3C | Verify with support | Contact technical support |
| Model | Serial Number Range | Compatibility |
|---|---|---|
| EX200-3 | 2003001 - 2003800 | Full compatibility |
| EX200-3 | 2003801 and up | Verify original part number |
| EX200LC-3 | 200LC3001 and up | Full compatibility |
| Area | Coverage | Description |
|---|---|---|
| Engine Bay | Full | Engine sensors, ECU, alternator, starter, fuel system |
| Pump Room | Full | Main pump regulators, pressure sensors, control valve |
| Cab Interior | Full | Monitor, switches, joysticks, HVAC, safety systems |
| Exterior Chassis | Full | Lighting, sensors, grounds, external connections |
| Undercarriage | Travel | Travel motor sensors, parking brake circuits |
Q: What are symptoms of a failing wiring harness on a Hitachi EX200-3?
A: The EX200-3 is a classic machine, and harness degradation is extremely common. Symptoms include intermittent starting issues, random warning lights on the monitor, specific hydraulic functions not responding, or the machine shutting down unexpectedly. Brittle insulation and corroded connectors in the engine bay and main frame are the primary causes
Q: Why choose a complete harness replacement for my EX200-3?
A: Original EX200-3 harnesses suffer from insulation brittleness and connector corrosion after decades of service. Patching one damaged section often leads to another failure soon after, causing repeated downtime. A complete COGENG 0001835 harness restores the entire electrical system to OEM specification, providing a permanent, reliable solution for these classic workhorses.
Q: Is this harness a direct plug-and-play replacement for the Hitachi 0001835?
A: Yes, the COGENG EX200-3 main wiring harness is manufactured to exact OEM specifications for routing length, connector types, and pin assignments. It is a direct plug-and-play replacement requiring no wire splicing or modifications. Verify the part number on your original harness tag to confirm 0001835 is correct for your machine.
