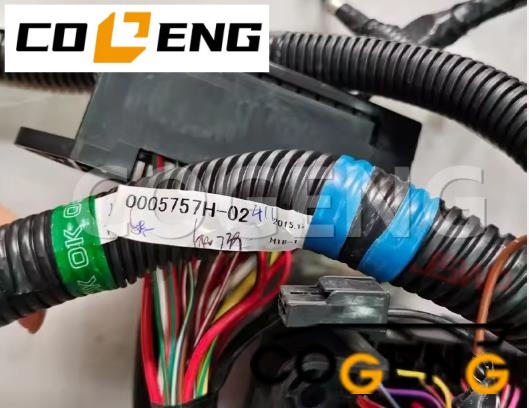

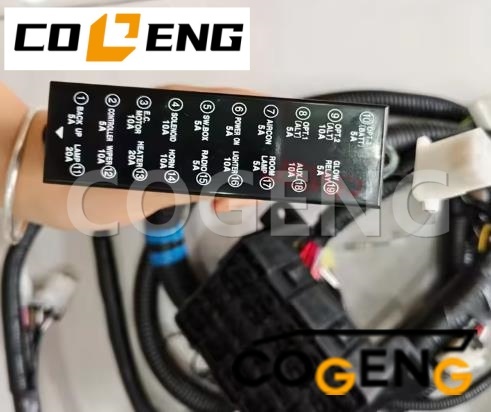

| Parameter | Specification |
|---|---|
| COGENG Part Numbers | 0005757, 0005757H, 0005757H-02 |
| OEM Reference | Hitachi 0005757, 0005757H, 0005757H-02 |
| Harness Type | Internal cab wiring harness (full interior coverage) |
| Wire Gauge Range | 0.3mm² to 2.5mm² (26 AWG to 14 AWG) |
| Number of Circuits | 40-65 circuits (depending on configuration) |
| Number of Connectors | 15-25 connectors |
| Connector Types | AMP, Deutsch, Sumitomo, Yazaki, JST (OEM specific) |
| Wire Insulation | XLPE (Cross-linked Polyethylene) / PVC |
| Temperature Range | -40°C to +105°C (-40°F to +221°F) |
| Rated Voltage | 12V / 24V DC (dual voltage compatible) |
| Conductor Material | Oxygen-free copper (tinned for corrosion resistance) |
| Terminal Plating | Tin (standard) / Gold (sensor/control circuits) |
| Shielded Circuits | Sensor signals, CAN bus (where applicable) |
| Protective Conduit | Corrugated nylon / PVC loom (flexible for compact routing) |
| Connector Sealing | Weather-pack seals for bulkhead pass-throughs |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | 1,500V AC for 1 minute (no breakdown) |
| Continuity Testing | 100% of circuits verified |
| Vibration Resistance | 10-500 Hz, 2g, 10 hours (no discontinuity) |
| Service Life | 5,000-7,000 hours in typical compact excavator service |
| Component Category | Specification | Material / Standard |
|---|---|---|
| Monitor Display Harness | LCD monitor (machine information, gauges, warnings) | 10-20 pin connector, shielded where required |
| Switch Panel Harness | Key switch, rocker switches, push buttons, dimmer control | 0.5-1.25mm², color-coded by function |
| Joystick Controller Harness | Left/right pilot control joysticks (thumb rollers, switches, proportional controls) | 0.5-1.0mm², high-flex wire for joystick movement |
| HVAC Control Harness | Heater, A/C (if equipped), blower motor, temperature control | 0.5-2.5mm², sealed connectors |
| Safety System Harness | Seat belt switch, operator presence sensor, travel alarm relay | 0.5-1.25mm², redundant safety circuits |
| Lighting Harness (Interior) | Dome light, panel indicator lights, switch illumination | 0.5-1.0mm², constant + switched power |
| Accessory Harness | Radio (if equipped), 12V power outlet, USB port | 0.5-1.5mm², fused accessory circuits |
| Wiper/Washer Harness | Front window wiper, washer pump (cab models) | 0.85-1.5mm², weather-sealed connectors |
| CAN Bus Network | Machine control network (if equipped) | Twisted pair, 120Ω impedance, shielded |
| Grounding Harness | Cab chassis ground, instrument panel ground | 2.5-6.0mm², corrosion-resistant lugs |
| Bulkhead Interface | Connection to main chassis harness | 10-20 pin sealed bulkhead connector |
| Connector Seals | Weather-pack seals for exterior connections | Silicone rubber, IP67 rating |
| Hitachi Model | Series | COGENG Part | Application Notes | Compatibility Status |
|---|---|---|---|---|
| ZAX60 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZAX60 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZX60 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZX60 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZAX70 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZAX70 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZX70 | -1 series | 0005757 | Internal cab harness (standard) | Direct replacement |
| ZX70 | -1 series (late) | 0005757H | Internal cab harness (enhanced) | Direct replacement |
| ZX70 | -1 series (premium) | 0005757H-02 | Internal cab harness (premium) | Direct replacement |
| Model | Compatibility Status | Notes |
|---|---|---|
| ZAX60 (Japan Domestic) | Direct replacement | Minor differences possible |
| ZX60 (Export) | Direct replacement | Export specification verified |
| ZAX70 (Japan Domestic) | Direct replacement | Minor differences possible |
| ZX70 (Export) | Direct replacement | Export specification verified |
| ZAX60-2 | NOT COMPATIBLE | Different cab design |
| ZX60-2 | NOT COMPATIBLE | Different cab design |
| ZAX70-2 | NOT COMPATIBLE | Different cab design |
| ZX70-2 | NOT COMPATIBLE | Different cab design |
| ZX55 | Verify with support | Smaller cab, different configuration |
| ZAX50 | NOT COMPATIBLE | Different platform |
| Model | Serial Number Range | COGENG Part | Compatibility |
|---|---|---|---|
| ZAX60 / ZX60 | 600001 - 600500 | 0005757 | Full compatibility |
| ZAX60 / ZX60 | 600501 - 601000 | 0005757H | Full compatibility |
| ZAX60 / ZX60 | 601001 and up | 0005757H-02 | Full compatibility |
| ZAX70 / ZX70 | 700001 - 700500 | 0005757 | Full compatibility |
| ZAX70 / ZX70 | 700501 - 701000 | 0005757H | Full compatibility |
| ZAX70 / ZX70 | 701001 and up | 0005757H-02 | Full compatibility |

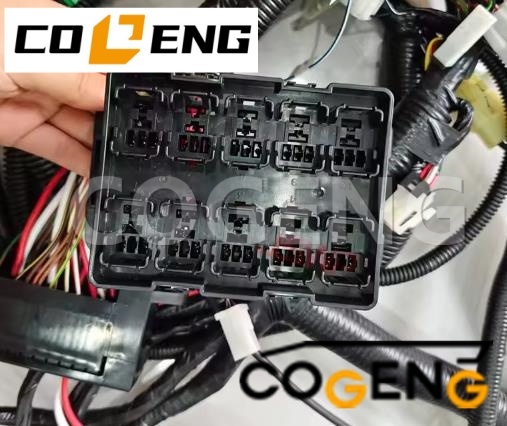

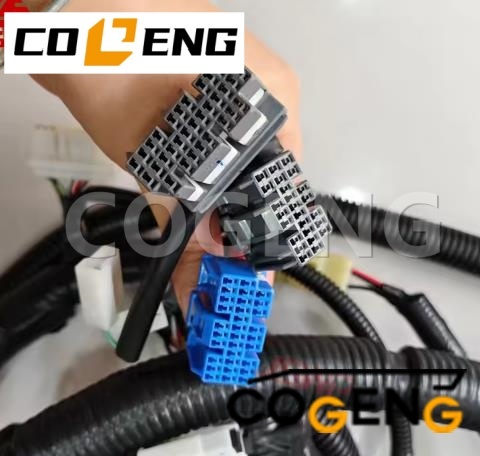

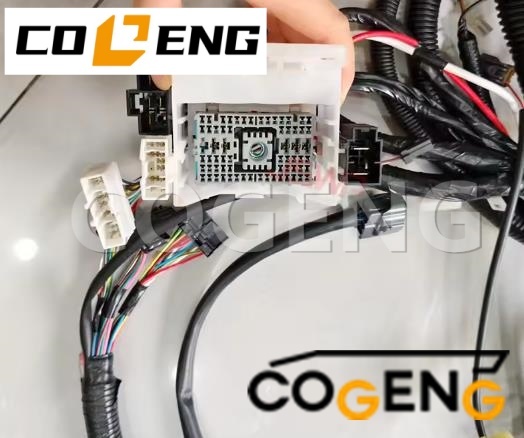

| Connection Point | Quantity | Connector Type | Circuit Type |
|---|---|---|---|
| Monitor display | 1 | 10-20 pin | Power, ground, CAN bus, video |
| Key switch | 1 | 4-6 pin | Battery, ignition, start, accessory |
| Switch panel | 1 | 8-12 pin | Lighting, wiper, horn, work lights |
| Left joystick | 1 | 6-10 pin | Proportional controls, thumb roller |
| Right joystick | 1 | 6-10 pin | Proportional controls, thumb roller |
| HVAC control | 1 | 4-8 pin | Blower, temperature, mode |
| Seat belt switch | 1 | 2 pin | Operator presence safety |
| Interior light | 1 | 2 pin | Dome light |
| Wiper motor | 1 | 2-3 pin | Front window wiper |
| 12V power outlet | 1 | 2 pin | Accessory power |
| Bulkhead connector | 1 | 10-20 pin | Interface to chassis harness |
| CAN bus terminator | 1 (if equipped) | 2 pin | Network termination resistor |
