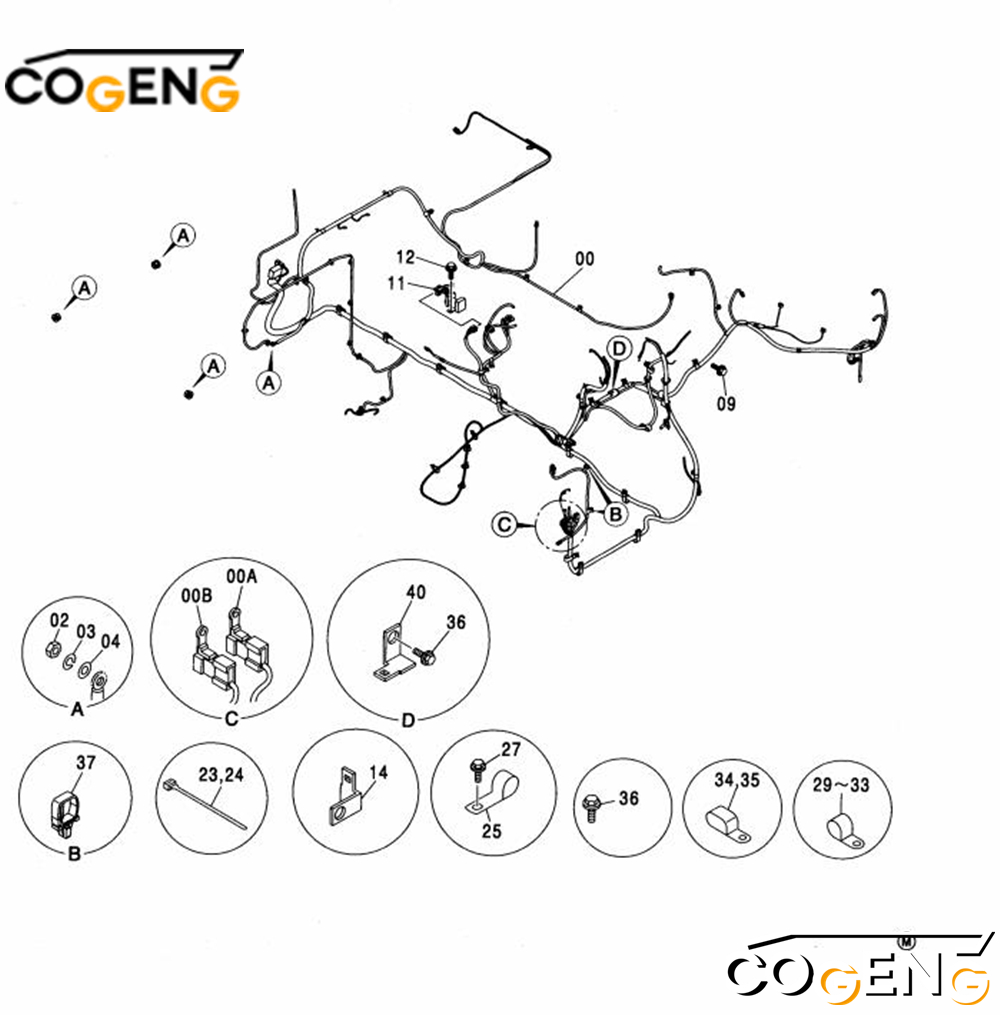

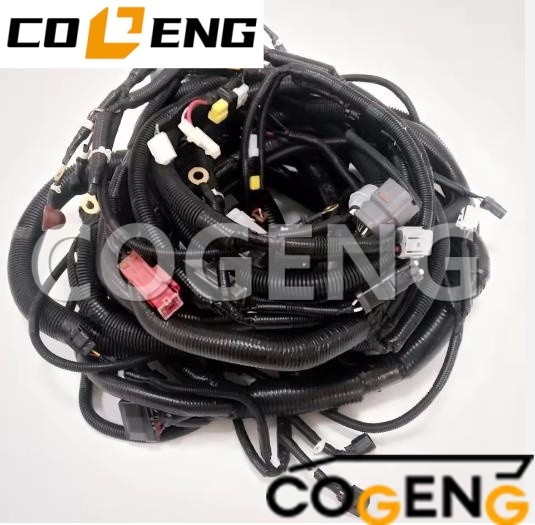

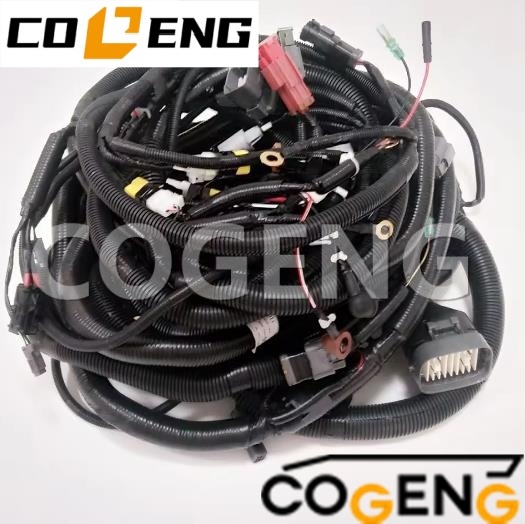

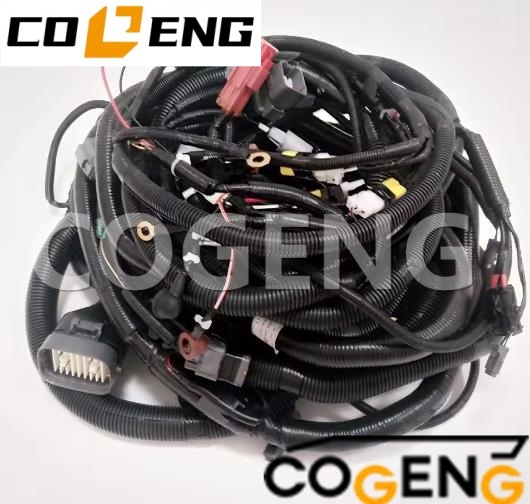

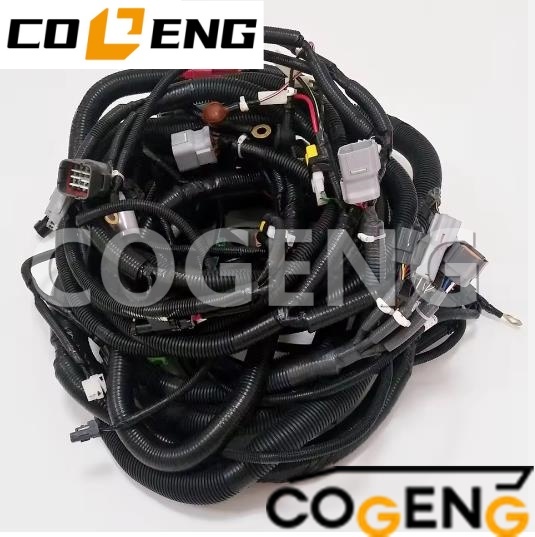

| Parameter | Specification |
|---|---|
| COGENG Part Number | 0006545 0005513 |
| OEM Reference | Hitachi 0006545 |
| Harness Type | External hydraulic system wiring harness (solenoids, sensors, pump control, valve block) |
| Wire Gauge Range | 0.5mm² to 3.0mm² (20 AWG to 12 AWG) |
| High-Current Circuits | 2.5-3.0mm² (solenoid power, proportional valve control) |
| Sensor Circuits | 0.5-0.85mm² (shielded where required) |
| Number of Circuits | 35-55 circuits (depending on machine configuration) |
| Number of Connectors | 12-18 connectors |
| Connector Types | Deutsch DT/DTP, AMP Superseal, Sumitomo HW, Yazaki (weather-sealed) |
| Wire Insulation | XLPE (Cross-linked Polyethylene) / TPE (oil-resistant) |
| Temperature Range | -40°C to +125°C (-40°F to +257°F) |
| Rated Voltage | 24V DC (12V-32V operating range) |
| Conductor Material | Oxygen-free copper (tinned for corrosion resistance) |
| Terminal Plating | Tin (standard) / Gold (sensor/control circuits) |
| Heat Shielding | Reflective aluminum/glass fiber (exhaust proximity zones) |
| Protective Conduit | Corrugated nylon / PVC loom (heat-shrink sealed ends) |
| Abrasion Protection | Spiral wrap / nylon braid (high-wear zones) |
| Connector Sealing | IP67 / IP69K (waterproof, dustproof) |
| Salt Spray Resistance | 500 hours minimum (ASTM B117) |
| Insulation Resistance | ≥ 100 MΩ at 500V DC |
| Dielectric Strength | 1,500V AC for 1 minute (no breakdown) |
| Continuity Testing | 100% of circuits verified |
| Thermal Cycling | -40°C to +125°C, 500 cycles |
| Service Life | 5,000-8,000 hours in typical excavator service |
| Component Category | Specification | Material / Standard |
|---|---|---|
| Main Pump Control Harness | Main hydraulic pump (variable displacement) | 0.85-1.25mm², shielded control lines |
| Solenoid Valve Harness | Main control valve solenoids (boom, arm, bucket, swing, travel) | 1.25-2.5mm², high-current, oil-resistant |
| Proportional Valve Harness | Proportional pressure reducing valves (PPRV) | 0.85-1.25mm², PWM signal rated |
| Pressure Sensor Harness | Pump pressure, pilot pressure, implement pressure | 0.5-0.85mm², shielded, 5V reference |
| Temperature Sensor Harness | Hydraulic oil temperature, engine coolant (external sensors) | 0.5-0.85mm², sealed connectors |
| Level Sensor Harness | Hydraulic tank level, fuel level (external) | 0.5-0.85mm², corrosion-resistant |
| Filter Clogging Sensors | Return filter, pilot filter, case drain filter | 0.5-0.85mm², normally open/closed circuits |
| Swing Brake Solenoid | Swing parking brake control | 1.25-2.5mm², high-current, sealed |
| Travel Motor Harness | Travel motor shift solenoids, parking brake | 0.85-1.25mm², oil-resistant, high-flex |
| Cooling Fan Harness | Hydraulic cooling fan motor control | 1.25-2.5mm², PWM control, heat-shielded |
| Chassis Ground Harness | Pump, valve block, engine grounds | 6.0-16mm², corrosion-resistant lugs |
| Connector Seals | Weather-pack seals for external connectors | Silicone rubber, IP67/IP69K rating |
| Heat Shielding | Exhaust and turbo proximity zones | Reflective aluminum + fiberglass sleeve |
| Abrasion Protection | High-wear zones (frame edges, moving parts) | Nylon spiral wrap / polyethylene braid |
| Hitachi Model | Series | Application Notes | Compatibility Status |
|---|---|---|---|
| ZX450F-3 | -3 series | External HYD wiring harness (full machine) | Direct replacement |
| ZX450-3 | -3 series | External HYD wiring harness (full machine) | Direct replacement |
| ZX450LC-3 | -3 series (long undercarriage) | External HYD wiring harness | Direct replacement |
| ZX450-5 | -5 series | Different connector configuration | NOT COMPATIBLE |
| ZX470-3 | -3 series | Verify with technical support | May be compatible |
| ZX350-3 | -3 series | Different harness configuration | NOT COMPATIBLE |
| ZX370-3 | -3 series | Different harness configuration | NOT COMPATIBLE |
| ZX870-3 | -3 series | Different harness configuration | NOT COMPATIBLE |
| Model | Compatibility Status | Notes |
|---|---|---|
| ZX450F-3 (Forestry) | Direct replacement | Forestry guard modifications verified |
| ZX450LC-3 | Direct replacement | Long undercarriage, same harness |
| ZX450H-3 | Direct replacement | High-walker configuration |
| ZX450-1 | NOT COMPATIBLE | Different electrical architecture |
| ZX450-2 | NOT COMPATIBLE | Different electrical architecture |
| Model | Serial Number Range | Compatibility |
|---|---|---|
| ZX450F-3 | 450F3001 and up | Full compatibility |
| ZX450-3 | 4503001 and up | Full compatibility |
| ZX450LC-3 | 450LC3001 and up | Full compatibility |
