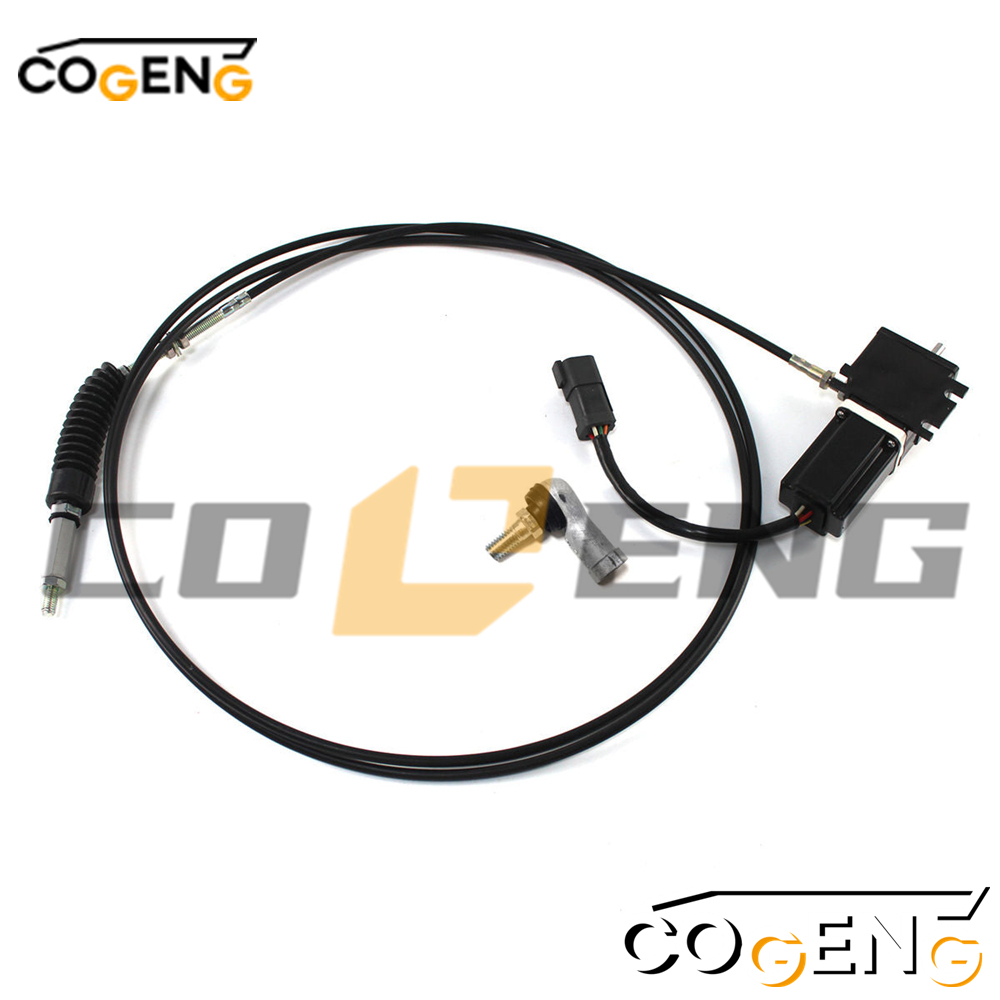

| Parameter | Specification |
|---|---|
| COGENG Part Number | 102-8007 (Replacement) |
| OEM Equivalent | Caterpillar 102-8007 |
| Product Type | Throttle Motor / Engine Speed Actuator |
| Connector Type | Square Plug (4-pin / 5-pin) |
| Voltage | 24V DC (Caterpillar standard) |
| Application | Engine speed control / RPM regulation |
| Mounting Type | Direct bolt-on |
| Brand | Part Number |
|---|---|
| COGENG | 102-8007 (Replacement) |
| Caterpillar | 102-8007 |
| Interchange | 102-8008, 102-8009, 102-8010, 7E-7840 |

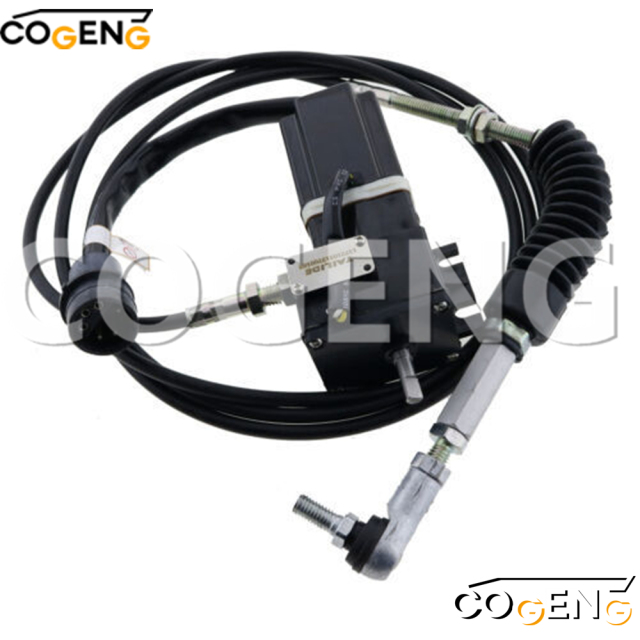

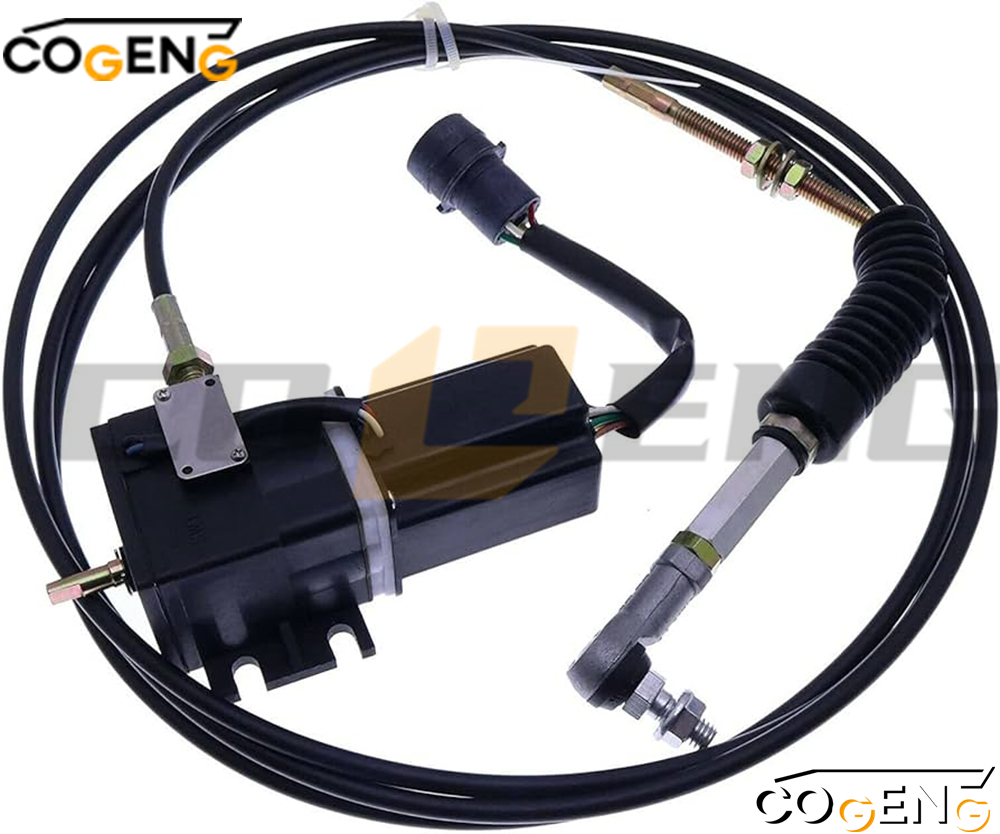

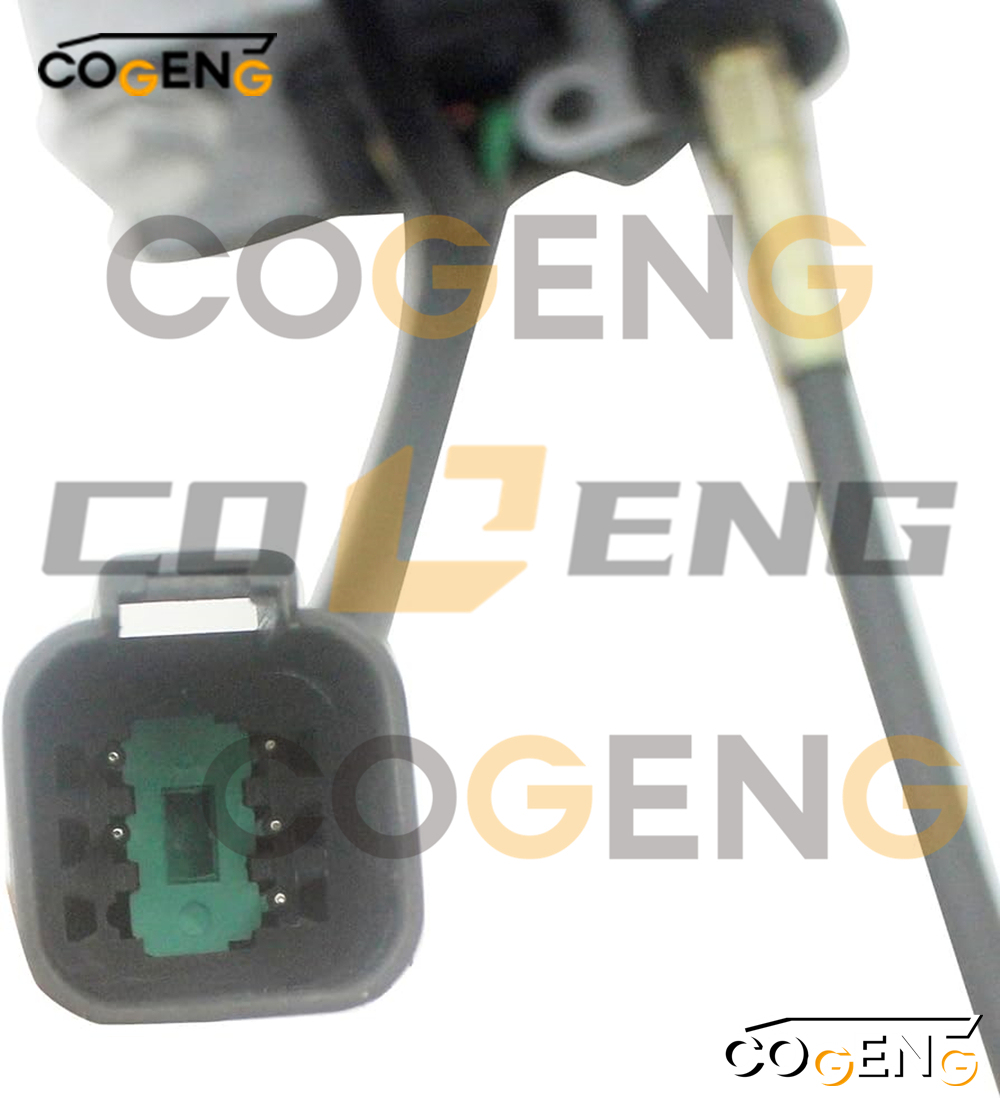

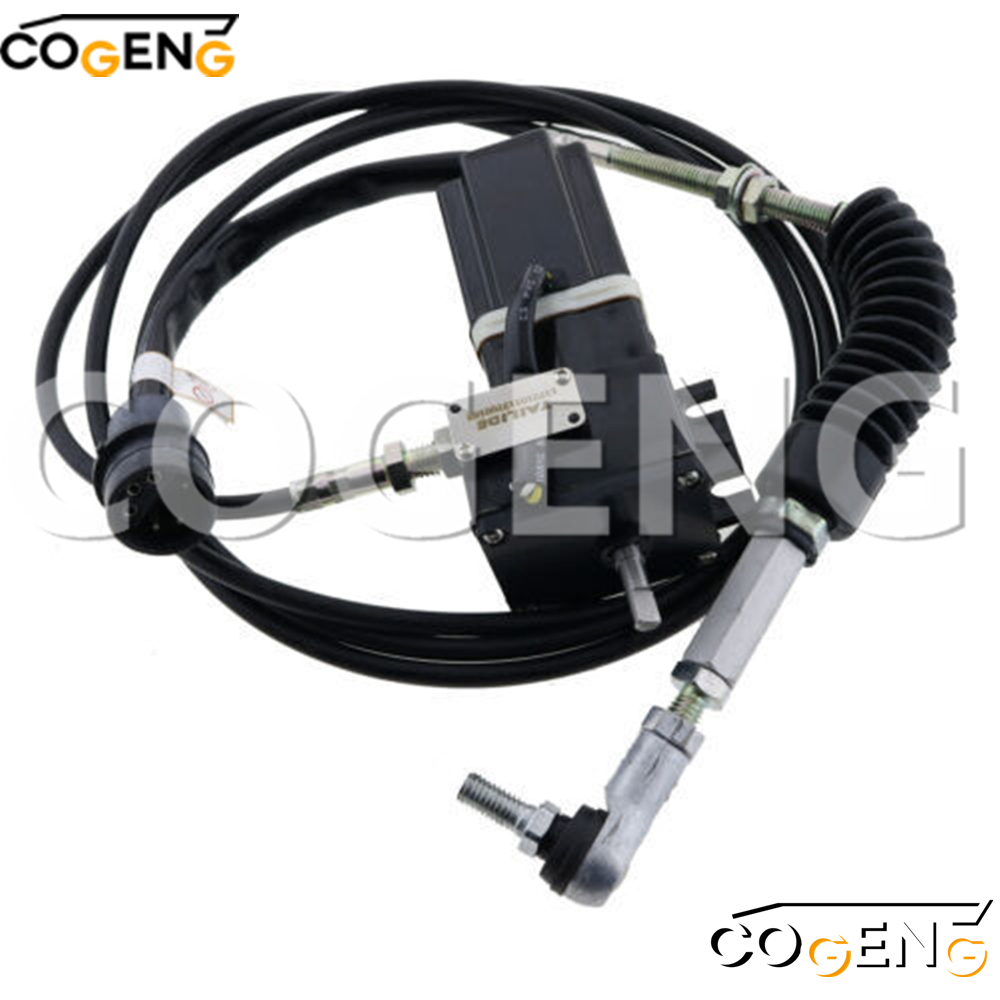

The distinctive square plug connector (4-pin or 5-pin) is a key identifying feature of this throttle motor
| Feature | Description |
|---|---|
| Connector Shape | Square / Rectangular |
| Pin Count | 4-pin or 5-pin (verify application) |
| Connector Type | Caterpillar OEM square plug |
| Sealing | Weather-resistant |
| Polarization | Keyed for correct orientation |
| Pin | Function | Signal Type |
|---|---|---|
| Pin A | Motor power (+) | 24V DC (PWM) |
| Pin B | Motor power (-) | Ground |
| Pin C | Position feedback signal | 0.5V - 4.5V DC |
| Pin D | Feedback ground | 0V |
| Pin | Function | Signal Type |
|---|---|---|
| Pin A | Motor power (+) | 24V DC (PWM) |
| Pin B | Motor power (-) | Ground |
| Pin C | Position feedback signal | 0.5V - 4.5V DC |
| Pin D | Feedback ground | 0V |
| Pin E | Feedback supply (+5V) | 5V DC regulated |
| Parameter | Specification |
|---|---|
| Voltage Rating | 24V DC |
| Current Draw (idle) | 0.5 - 1.0 A |
| Current Draw (max load) | 2.5 - 4.0 A |
| Motor Type | DC servo motor |
| Duty Cycle | Intermittent / Continuous |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP65 / IP67 |
| Electrical Connection | Square plug (4-pin or 5-pin) |
| Feedback Sensor | Integrated potentiometer (0-5V) |
| Parameter | Specification |
|---|---|
| Motor Type | Permanent magnet DC motor |
| Gear Train | Planetary gear reduction |
| Output Shaft Type | Splined / D-shaped |
| Rotation Angle | 0° - 75° (typical) |
| Torque Output | 3 - 5 Nm |
| Response Time | ≤ 0.5 sec (full range) |
| Housing Material | Aluminum die-cast |
| Mounting Interface | Caterpillar standard |
| Weight | 1.2 - 1.6 kg (2.6 - 3.5 lbs) |
| Parameter | Specification |
|---|---|
| Sensor Type | Potentiometer (rotary) |
| Supply Voltage | 5V DC (regulated) |
| Output Voltage Range | 0.5V - 4.5V |
| Resistance Range | 1kΩ - 5kΩ |
| Linearity | ±1% |
| Operating Angle | 0° - 75° |
| Parameter | Rating |
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature | -40°C to +105°C (-40°F to +221°F) |
| Vibration Resistance | 15G @ 50-1000Hz |
| Shock Resistance | 40G |
| Ingress Protection | IP65 / IP67 |
| Corrosion Protection | Painted / Anodized finish |
| Equipment Type | Models | Application |
|---|---|---|
| Backhoe Loaders | 416, 420, 428, 430, 432, 442 | Throttle control |
| Excavators | 311, 312, 313, 315, 316, 318, 319, 320, 321, 322, 323, 324, 325, 326, 328, 329, 330, 336, 340, 345, 349 | Throttle control |
| Wheel Loaders | 906, 908, 914, 918, 920, 924, 928, 930, 938, 950, 950G, 950H, 962, 962G, 962H, 966, 966G, 966H, 970, 972, 972G, 972H, 980, 980G, 980H, 982, 986, 988, 988G, 988H, 990, 992 | Throttle control |
| Motor Graders | 120, 12, 135, 140, 14, 150, 160, 16, 18 | Throttle control |
| Dump Trucks | 725, 730, 735, 740, 745, 770, 772, 773, 775, 777, 785, 789, 793, 795, 797 | Throttle control |
| Track Tractors | D3, D4, D5, D6, D7, D8, D9, D10, D11 | Throttle control |
| NO | Number | Name | Qty |
| 1 | 41-5399 | GROMMET | 1 |
| 2 | 8T-4200 | BOLT | 2 |
| 3 | 8T-4224 | WASHER | 4 |
| 4 | 4D-7794 | CLIP | 2 |
| 5 | 9X-8256 | WASHER | 10 |
| 6 | 5C-9553 | BOLT | 3 |
| 7 | 096-2626 | CLIP | 1 |
| 8 | 5C-7261 | NUT | 1 |
| 9 | 8T-6411 | SCREW | 4 |
| 10 | 102-8019 | CONTROL AS | 1 |
| 7N-7779 | SOCKET | 6 | |
| 7N-7780 | PIN | 7 | |
| 9G-3677 | HOUSING | 1 | |
| 11 | 8T-4137 | BOLT | 2 |
| 12 | 8T-4121 | WASHER | 1 |
| 13 | 8T-4136 | BOLT | 1 |
| 14 | 1R-8551 | COVER AS | 1 |
| 15 | 102-80401 | LEVER | 1 |
| 16 | 02-8035 | BRACKET AS | 3 |
| 17 | 7Y-9390 | KNOB | 3 |
| 18 | 096-5486 | SCREW | 1 |
| 19 | 102-8034 | RUBBER | 3 |
| 20 | 102-8007 | MOTOR | 1 |
| 7N-7779 | SOCKET | 1 | |
| 7N-7780 | PIN | 3 | |
| 9G-3671 | HOUSING | 1 |
