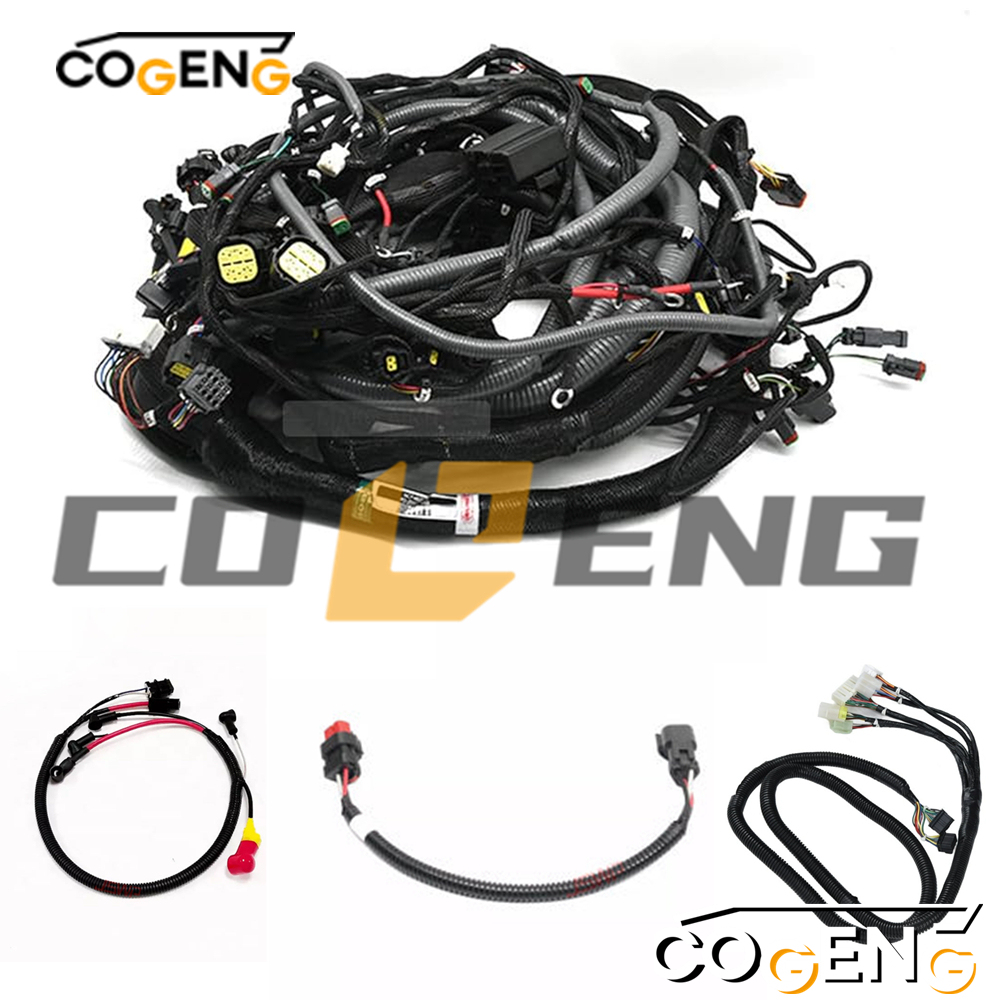

COGENG OEM-Compatible Main Wiring Harness for Komatsu Excavators | Replaces 203-06-71590

Name: COGENG OEM-Compatible Main Wiring Harness for Komatsu Excavators | Replaces 203-06-71590
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Komatsu Wiring Harness

Part No: 203-06-71590

Model Number:For PC130F-7

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

PRODUCT IDENTIFICATION

Parameter	Specification
COGENG Part Number	203-06-71590
OEM Equivalent	Komatsu 203-06-71590
Product Type	Engine Wiring Harness Assembly
Application	Engine electrical system / ECM interface
Harness Type	Complete engine bay harness
Compatible Model	Komatsu PC130-7 Excavator
Key Function	Critical link between ECM and engine components

CROSS REFERENCE GUIDE

Brand	Part Number
COGENG	203-06-71590
Komatsu	203-06-71590
Interchange	203-06-71591, 203-06-71592, 203-06-71580

TECHNICAL SPECIFICATIONS

Electrical Specifications

Parameter	Specification
System Voltage	24V DC (Komatsu standard)
Current Capacity	Up to 45A (main power circuits)
Wire Gauge Range	14AWG - 20AWG (signal) / 8AWG - 12AWG (starter/alternator)
Insulation Resistance	≥100MΩ @ 500V DC
Dielectric Strength	1500V AC/60s No Breakdown
Voltage Drop	<0.5V @ rated load
Temperature Rating	-40°C to +125°C (engine bay rated)

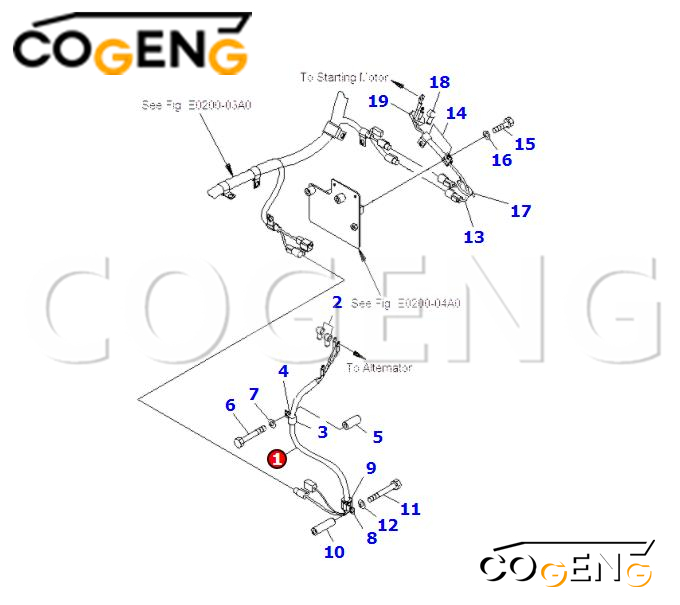

Decompose pictures

Parts list

NO	Number	Name	Qty
1	203-06-71590	WIRING HARNESS	1
2	08038-00519	CAP	2
3	04434-52110	CLIP	1
4	07095-20314	CUSHION	1
5	203-06-D1130	SPACER	1
6	01010-81065	BOLT	1
7	01643-31032	WASHER	1
8	04434-52112	CLIP	1
9	07095-20314	CUSHION	1
10	175-61-17240	COLLAR	1
11	01010-81285	BOLT	1
12	01643-31232	WASHER	1
13	203-06-71152	CABLE	1
14	04434-51410	CLIP	2
15	01010-81020	BOLT	2
16	01643-31032	WASHER	2
17	08034-20519	BAND	1
18	08038-00519	CAP	1
19	08034-40521	BAND	1

The part number "203-06-71590" corresponds to a wiring harness used in Komatsu machinery. However, without specific information about the model or machine it is used for, it is challenging to provide detailed information about its application.

A wiring harness is a collection of wires, connectors, and terminals that are bundled together to provide electrical connections and transmit signals within a machine or vehicle. It ensures proper and organized electrical connections, aiding in the efficient operation of various electrical components.

To obtain the correct wiring harness for your Komatsu machine, it is recommended to reach out to an authorized Komatsu dealer, distributor, or a reputable supplier of Komatsu spare parts. They will be able to assist you in identifying the appropriate wiring harness based on the model and specific requirements of your Komatsu machinery.

Installation decomposition diagram

Frequently Asked Questions

A. When will get the items after I place order?

Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?

Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??

Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??

Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?

Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??

Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?

Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?

Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.

A : Which payment terms can you accept?

Q : Paypal. Western Union, Bank Transfer, T/T...
