| Category | Specification |
|---|---|
| COGENG Part Number | CG-VOL-22067983 |
| OEM Reference | 22067983 / VOE22067983 |
| Compatible Model | Volvo EC290B |
| Machine Class | 29-Ton Excavator |
| Series | Volvo B-Series |
| Wire Insulation | Oil-Resistant XLPE |
| Connector Rating | IP67 (Waterproof & Dustproof) |
| Temperature Range | -40°C to 125°C |
| Voltage Rating | 24V DC System |
| Quality Validation | 100% Circuit Testing |
| Warranty Coverage | 18-Month Limited Warranty |

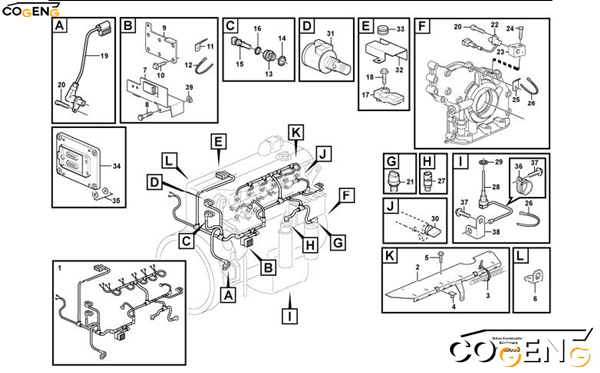

| NO | Number | Name | Qty |
| 1 | VOE22067983 | Wiring harness | 1 |
| •CONNECTED TO: | |||
| ••Connector | |||
| ••Engine speed,camshaft |
|||
| ••Solenoid valve | |||
| ••Coolant temperature |
|||
| ••Charge-air temperature |
|||
| ••Fuel Regulator | |||
| ••Fuel Nozzle | |||
| ••Fuel filter | |||
| ••Oil pressure sensor |
|||
| ••Engine speed | |||
| ••Pressure Sensor | |||
| ••Level Sensor | |||
| ••Starter Motor | |||
| 2 | VOE20799892 | Bracket | 1 |
| 3 | VOE20460347 | Clamping band | 7 |
| 4 | Cable Clamp | 1 | |
| 5 | VOE20460055 | Screw | 3 |
| 6 | VOE20799942 | Bracket | 1 |
| 7 | VOE21377079 | Bracket | 1 |
| 8 | VOE20450802 | Flangescrew | 2 |
| 9 | VOE21896711 | Retaining plate | 1 |
| 10 | VOE20405672 | Screw | 4 |
| 11 | Bracket | 1 | |
| 12 | VOE4881440 | Cable tie | REQ |
| 13 | VOE20450683 | Adapter | 1 |
| 14 | VOE13947628 | Plane gasket | 1 |
| 15 | VOE21531072 | Temperature sensor | 1 |
| 16 | Seal | 1 | |
| 17 | VOE20524936 | Pressure sensor | 1 |
| 18 | VOE20460055 | Screw | 1 |
| 19 | VOE22435058 | Sensor | 1 |
| 20 | VOE20450694 | Screw | 2 |
| 21 | VOE21291011 | Pressure sensor | 1 |
| 22 | VOE20450707 | Tachometer | 1 |
| 23 | VOE20700252 | Bracket | 1 |
| 24 | VOE20799862 | Bolt | 2 |
| 25 | VOE20450997 | Bracket | 2 |
| 26 | VOE4881440 | Cable tie | 4 |
| 27 | VOE22899626 | Pressure sensor | 1 |
| 28 | VOE22383378 | Level Sensor | 1 |
| 29 | VOE20515173 | Gasket | 1 |
| 30 | Pressure Sensor | 1 | |
| 31 | VOE20795296 | Solenoid valve | 1 |
| 32 | VOE23059821 | Guard plate | 1 |
| 33 | VOE20715095 | •Closure | 1 |
| 34 | VOE21063356 | Retainer | 2 |
| 35 | VOE20920048 | Cap | 2 |
| 36 | VOE20450867 | Clamp | 2 |
| 37 | VOE20405792 | Screw | 3 |
| 38 | VOE20852241 | Bracket | 1 |
Complete machine power shutdown required before installation
Follow Volvo EC290B specific routing diagrams and mounting positions
Ensure all connectors are fully engaged and locking mechanisms secured
Verify proper clearance from hydraulic components and heat sources
Perform comprehensive system diagnostics after installation
Frequently Asked Questions
Q: What Volvo model uses the VOE22067983 and VOE20554258 wiring harnesses?
A: These two wiring harnesses are specifically designed for the Volvo EC290B excavator. They form the main chassis harness and a secondary/auxiliary harness section that work together as a complete electrical system. Verify the part numbers on your original harness tags to confirm exact fitment.
Q: What does IP67 rated mean for my EC290B wiring harness?
A: IP67 rating means the electrical connectors are completely dust-tight and can withstand temporary immersion in water up to 1 meter depth. This is critical for EC290B excavators working in wet trenches, rainy conditions, or muddy job sites where standard connectors would corrode and cause electrical faults.
Q: Why are these two harnesses sold together as a set?
A: On the Volvo EC290B, these two harness sections (VOE22067983 and VOE20554258) interconnect and share critical power, ground, and CAN bus communication circuits. If one section has failed due to age or contamination, the mating section is likely also compromised. Replacing both together ensures complete electrical system reliability.
