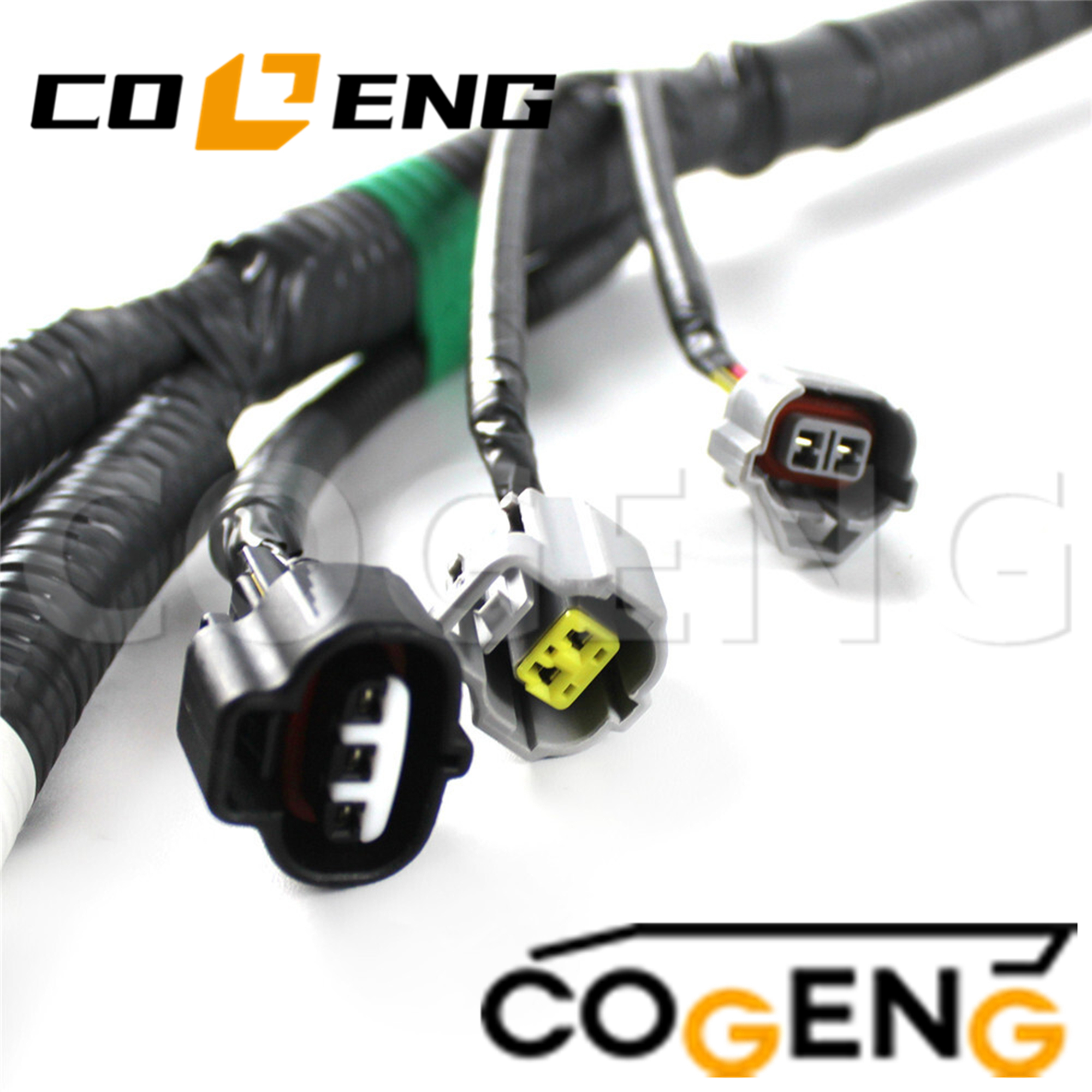

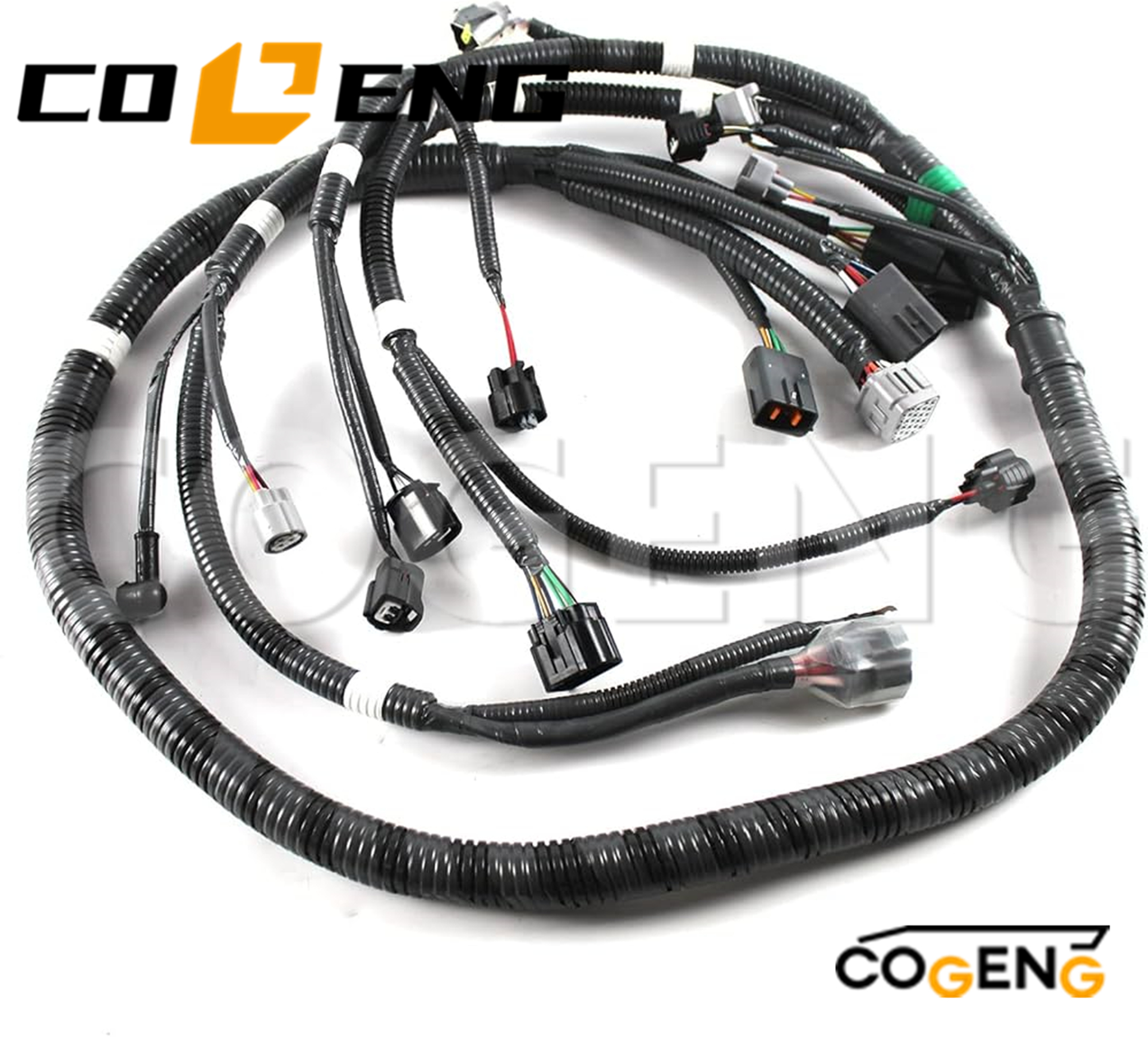

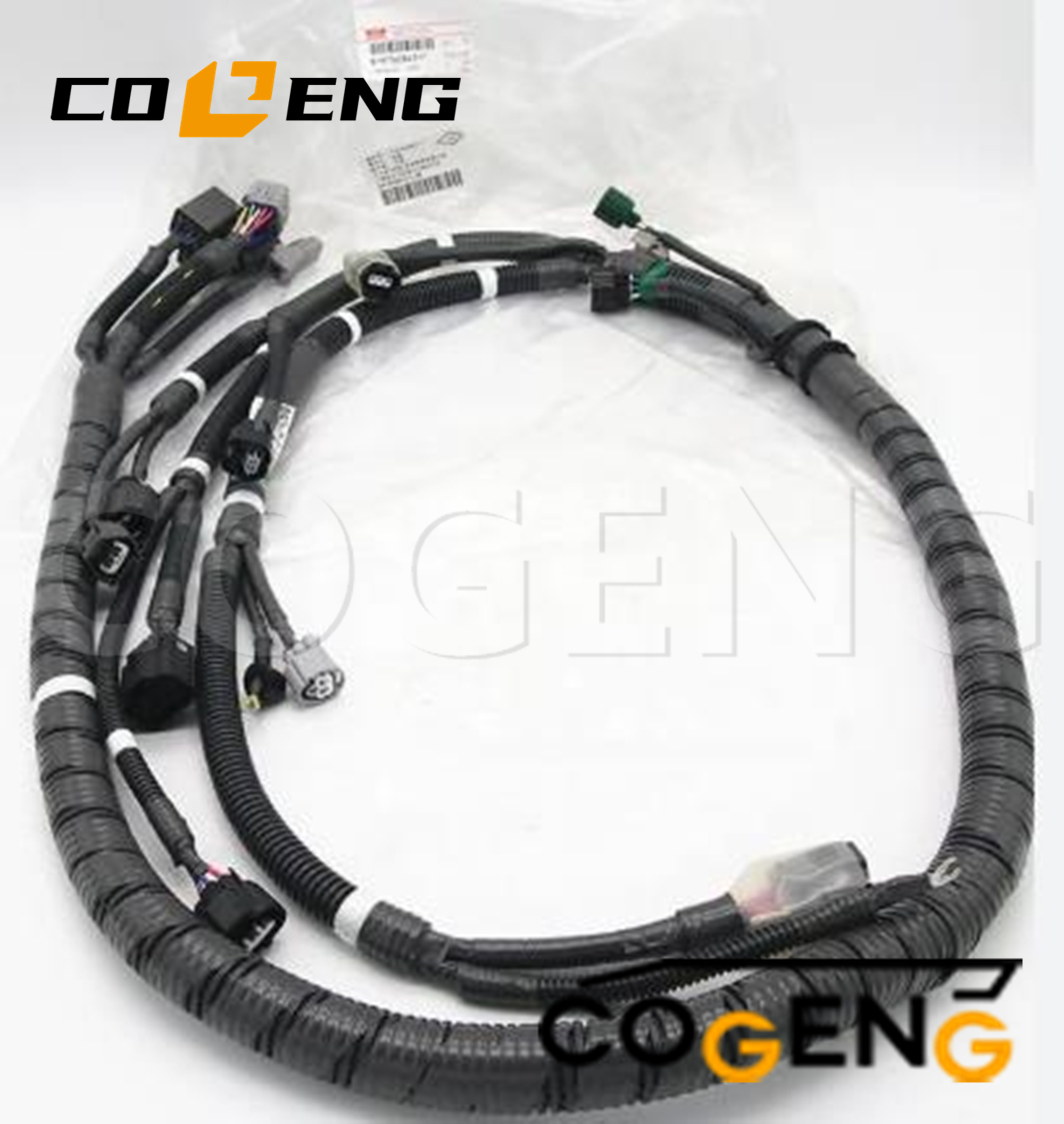

COGENG 8973628437 Premium Wiring Harness for Sumitomo

Name: COGENG 8973628437 Premium Wiring Harness for Sumitomo
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Sumitomo Wiring Harness

Part No: 8973628437

Model Number:For SH120-3, SH120-5, SH130-3, SH130-5, SH150-3, SH150-5, SH180-3, SH180-5, SH200-3, SH200-5, SH210-3, SH210-5

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

PRODUCT IDENTIFICATION

Parameter	Specification
COGENG Part Number	8973628437
OEM Equivalent	Sumitomo 8973628437
Product Type	Wiring Harness Assembly
Application	Main machine electrical system
Harness Type	Complete equipment harness (cab + engine + chassis)
Connector Type	OEM-grade sealed connectors

Parameter	Specification	Testing Standard
COGENG Part Number	COGENG-8973628437-WH	Internal Quality Standard QS-491
Replaces OEM Part No.	8973628437	Direct OEM Replacement
Wire Gauge Range	0.5 mm²- 10.0 mm²	ISO 6722
Temperature Rating	-40°C to +125°C (-40°F to +257°F)	ISO 16750-4
Insulation Material	Cross-linked polyethylene	UL 224
Protective Conduit	Corrugated PVC/Nylon blend	ISO 6722 Class C
Voltage Rating	48V DC	IEC 60589
Current Capacity	5A - 80A (circuit dependent)	ISO 3780
Insulation Resistance	>100 MΩ at 1000V DC	IEC 60851
Dielectric Strength	2500V AC for 60 seconds	ISO 1456
Connector System	Sumitomo/Yazaki OEM style	USCAR-2
Waterproof Rating	IP67 (connectors)	IEC 60529
Vibration Resistance	10-2000 Hz, 20G RMS	ISO 19453

Circuit Function	Wire Gauge	Color Code	Connector Type	Application
Engine ECU Main	2.0 mm²	Red/Black	32-pin Sumitomo	ECU power & ground
Fuel Injection	1.25 mm²	Orange/White	8-pin Metri-pack	Injector control
Sensors Group	0.85 mm²	Various	4-pin Weather-pack	Temperature/pressure
Hydraulic Solenoids	1.5 mm²	Blue/Green	12-pin Yazaki	Valve control
Lighting Circuits	2.0 mm²	Yellow/Red	6-pin Sumitomo	Work lights
Cab Controls	0.5 mm²	Gray/Brown	24-pin Yazaki	Operator inputs
Monitor System	0.5 mm²	Purple/White	16-pin Sumitomo	Display & sensors
Starter Motor	10.0 mm²	Red	Heavy-duty lugs	Starting circuit
Alternator Output	8.0 mm²	White	Ring terminals	Charging system

Installation decomposition diagram

F
requently Asked Questions

A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
