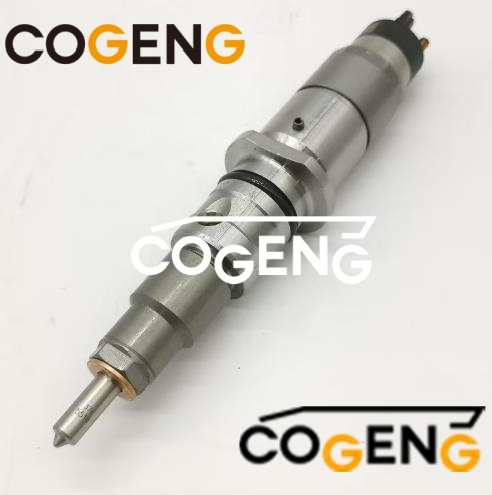

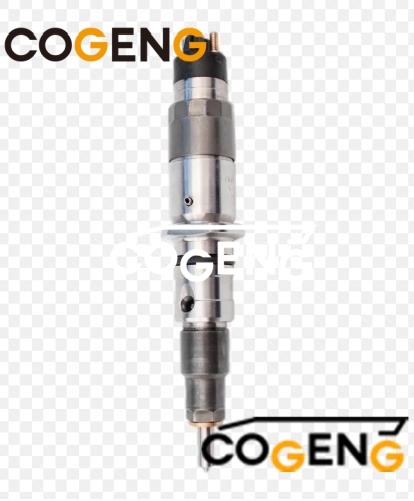

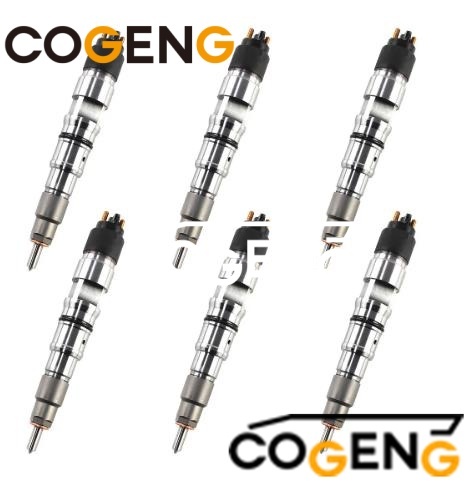

Models: 0445120231 (Bosch) / 6754-11-3010 (Komatsu)
Application: Komatsu Excavators & Heavy Construction Equipment
Type: OEM Direct Replacement – Common Rail Diesel Injector
| Replaces OEM Part Numbers | Bosch 0445120231 / Komatsu 6754-11-3010 (6754113010) |
| Brand | COGENG Genuine (Bosch OEM Base) |
| Injector Type | Common Rail Fuel Injector (CRIN) |
| Common Applications | Komatsu PC200-8, PC220-8, PC300-8, PC350-8 Excavators |
| Symptoms Solved | Low power, black/white smoke, hard starting, high fuel consumption, engine knock |
| Key Feature | Genuine Bosch core with multi-hole nozzle for superior fuel atomization |
| Parameter | Specification |
|---|---|
| COGENG Part Number | 0445120231 |
| Bosch Cross Number | 0445120231 |
| Komatsu OEM Number | 6754-11-3010 |
| Product Type | Common Rail Solenoid Injector |
| Technology | Bosch Genuine Architecture |
| Fuel System | High-Pressure Common Rail (HPCR) |
| Parameter | Specification |
|---|---|
| Actuation | Solenoid-operated electronic control |
| Coil Resistance | 0.9 – 1.3 Ω @ 20°C |
| Peak Current | 20 – 24 A |
| Hold Current | 10 – 12 A |
| Response Time | < 0.5 ms |
| Parameter | Specification |
|---|---|
| Maximum Rail Pressure | 1,600 bar (23,200 psi) |
| Nozzle Configuration | Multi-hole (optimized for Komatsu engines) |
| Spray Angle | OEM-specified |
| Static Flow Rate | Factory-calibrated per Bosch spec |
| Flow Tolerance | ± 3% |
| Parameter | Specification |
|---|---|
| Overall Length | OEM standard |
| Mounting Thread | M16 × 1.5 |
| Clamp Bolt Torque | 65 ± 5 Nm (verify with engine manual) |
| High-Pressure Inlet | M14 × 1.5 |
| Sealing Washer | Copper (replace each installation) |
| Weight (each) | Approx. 0.78 kg |
| Component | Material |
|---|---|
| Injector Body | Case-hardened nickel-chrome-moly steel |
| Nozzle Needle | High-speed tool steel with anti-wear coating |
| Solenoid Coil | High-temperature Class H copper |
| Seals | Viton (FKM) / PTFE |
| Internal Filter | Stainless steel (20–30 micron) |
| Brand | Part Number |
|---|---|
| COGENG | 0445120231 |
| Bosch | 0445120231 |
| Komatsu | 6754-11-3010 |
| Interchange | 0445120232, 6754-11-3011 |
✅ 100% interchangeable with original Komatsu 6754-11-3010 injectors.
✅ No ECU remapping or hardware modification required for standard applications.
This injector is specifically calibrated for Komatsu engines used in the following equipment families:
Komatsu PC200-8 / PC200LC-8
Komatsu PC210-8 / PC210LC-8
Komatsu PC220-8
Komatsu PC300-8 / PC300LC-8
Komatsu PC350-8 / PC350LC-8
Komatsu PC360-8 / PC360LC-8
Komatsu PC400-8 / PC400LC-8
Komatsu PC450-8
Komatsu WA380-6 / WA380-8
Komatsu WA420-6 / WA420-8
Komatsu WA470-6 / WA470-8
Komatsu WA500-6 / WA500-8
Komatsu D275A-5 / D275AX-5
Komatsu D375A-6
Komatsu HD465-7 / HD605-7
Komatsu SAA6D107E-2 / SAA6D107E-3
Komatsu SAA6D114E-3 / SAA6D114E-5
Komatsu SAA6D125E-3 / SAA6D125E-5
Komatsu SAA6D140E-3 / SAA6D140E-5
⚠️ Always verify engine serial number and injector trim code compatibility before installation.
| Item | Requirement |
|---|---|
| Copper sealing washer | MUST be replaced every time |
| Bore cleanliness | Absolute – contamination is the #1 failure cause |
| Fuel filtration | Minimum 5 micron absolute |
| Lubrication | Use clean engine oil on O-rings only |
| ECU coding | Required if original injector had trim codes |
| Fastener | Torque (Nm) | Torque (ft-lbs) |
|---|---|---|
| Injector clamp bolt | 65 ± 5 | 48 ± 4 |
| High-pressure line nut | 40 ± 4 | 30 ± 3 |
| Fuel return line | 25 ± 3 | 18 ± 2 |
📘 Full installation manual included with each injector set.
Frequently Asked Questions
Q: What does the IQA code on the Bosch 0445120231 injector mean?
A: The IQA (Injector Quantity Adjustment) code printed on the top of the injector is a calibration code specific to that individual injector's flow characteristics. Critical: After installing a new 0445120231 injector, you must input this code into the Komatsu engine ECU using diagnostic software. Failure to do so will result in rough running, low power, and active fault codes.
Q: How can I tell if my Bosch 0445120231 injector is failing on a Komatsu PC200-8?
A: Common signs include excessive black smoke under acceleration, noticeable loss of digging power, increased fuel consumption, and a distinct "knocking" sound from the affected cylinder. You may also see fault codes related to fuel rail pressure deviation or injector circuit faults.
Q: Is this a genuine Bosch injector?
A: COGENG Genuine injectors are built with genuine Bosch cores and components, assembled to strict OEM specifications. This ensures the same durability, flow accuracy, and spray pattern as the original factory-installed part, providing a cost-effective alternative to dealership pricing.
