| Parameter | Specification |
|---|---|
| Product Name | VOLVO Pressure Sensor |
| COGENG Part Numbers | 20476992, 64MT475M, 20824479, 20449988, 22443498 |
| OEM Equivalent | Volvo 20476992, 64MT475M, 20824479, 20449988, 22443498 |
| Product Type | Engine & Hydraulic Pressure Sensors |
| Sensor Type | Piezoresistive pressure transducer |
| Output Type | 4-20 mA / 0.5-4.5V (application dependent) |
| Application | Fuel rail, oil pressure, boost, hydraulic, pilot |
| Compatible Engines | Volvo D11, D13, D16 |
| Material | Iron + Rubber (seals: NBR / FKM) |
| Packing | PP bag inside, carton box outside |
| Place of Origin | Guangdong, China |
| Brand Name | COGENG |
| Certification | ISO9001 |
| Supply Capacity | 500 PCS (each) |
Parts list
| Item | OEM Reference No. | COGENG Part No. | Description | Qty |
|---|---|---|---|---|

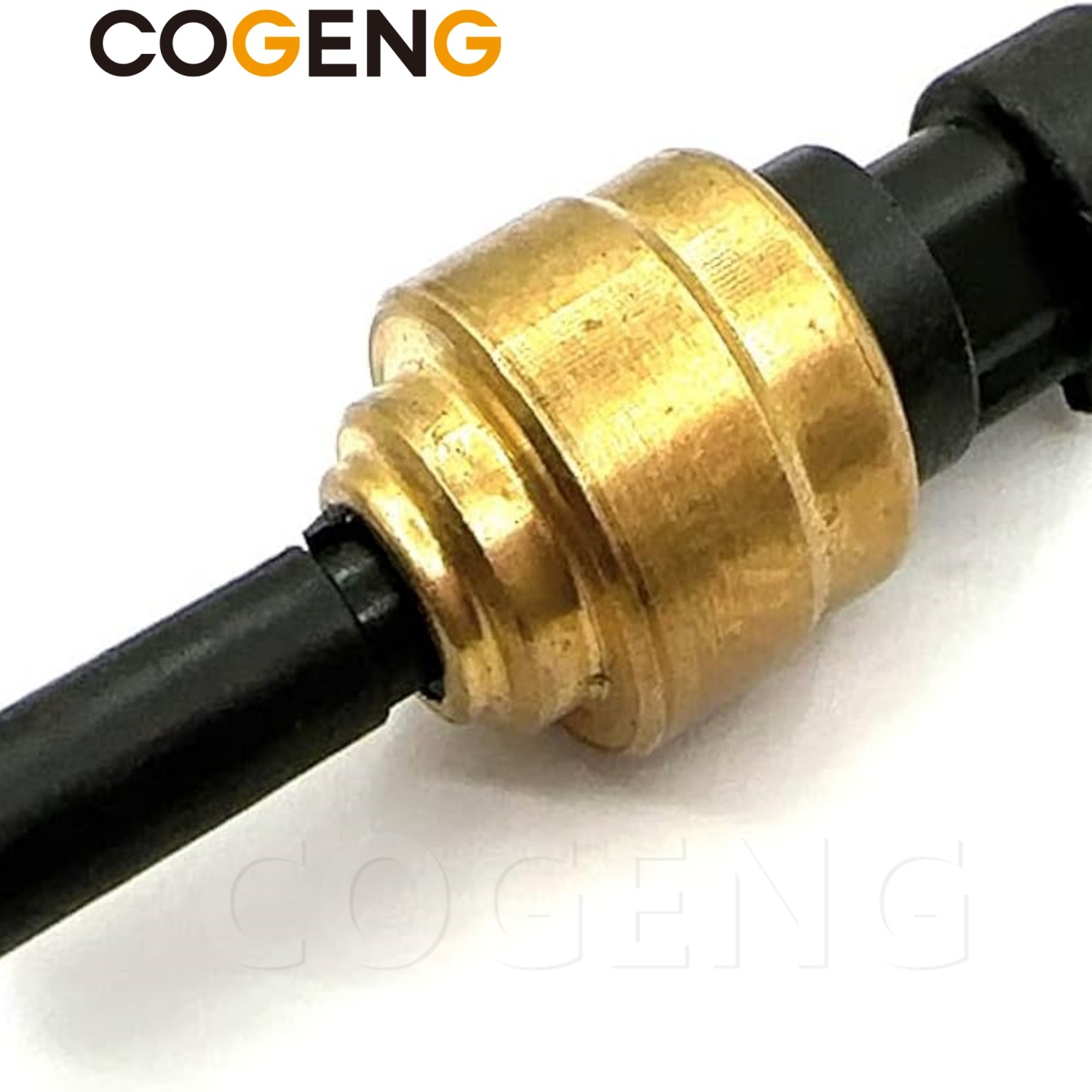

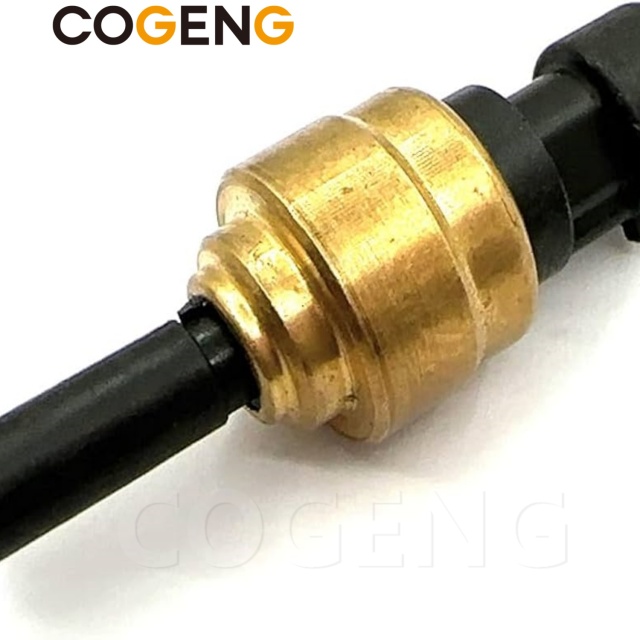

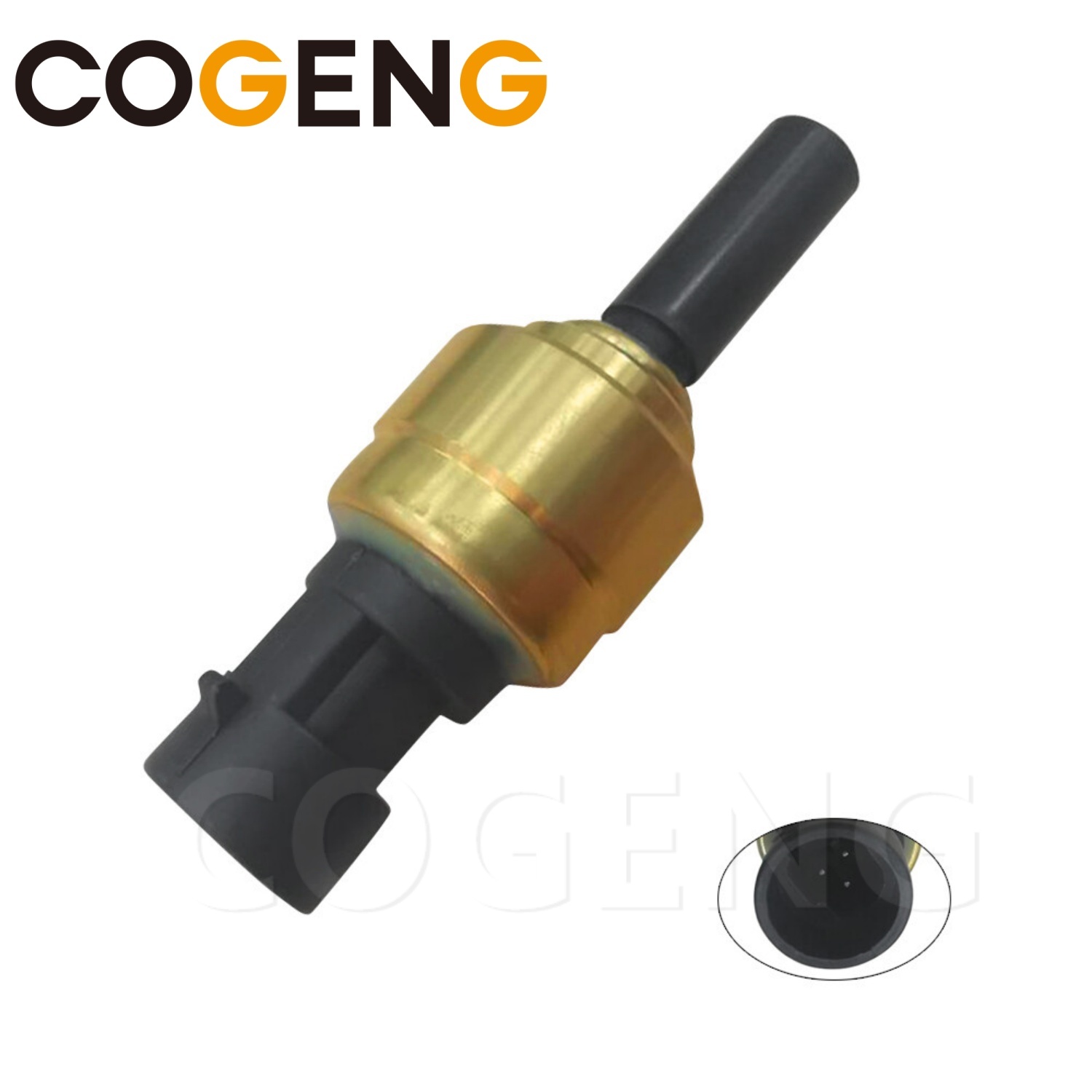

| 1 | 20824479 | CG-20824479 | Volvo Pressure Sensor — Complete Assembly (Iron Body, Rubber Seal, with Connector) | 1 |

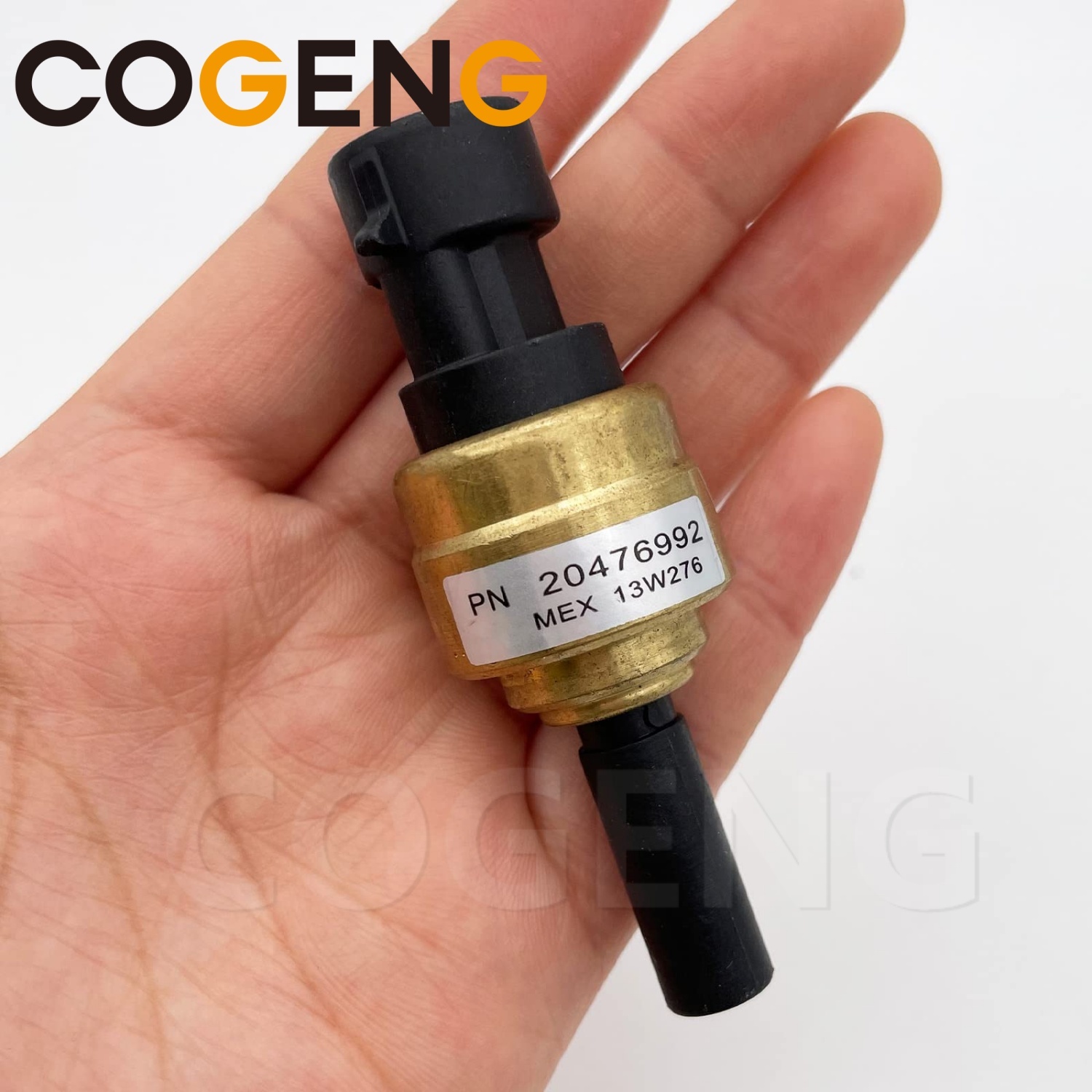

| 2 | 20476992 | CG-20476992 | Volvo Pressure Sensor — Alternative OEM Cross-Reference | 1 |
| 3 | 64MT475M | CG-64MT475M | Volvo Pressure Sensor — Alternative OEM Cross-Reference | 1 |
| 4 | 20449988 | CG-20449988 | Volvo Pressure Sensor — Alternative OEM Cross-Reference | 1 |
| 5 | 22443498 | CG-22443498 | Volvo Pressure Sensor — Alternative OEM Cross-Reference | 1 |
| 6 | — | CG-SEAL-VPS | Replacement Rubber O-Ring / Sealing Gasket Kit for Volvo Pressure Sensors | 1 Set |

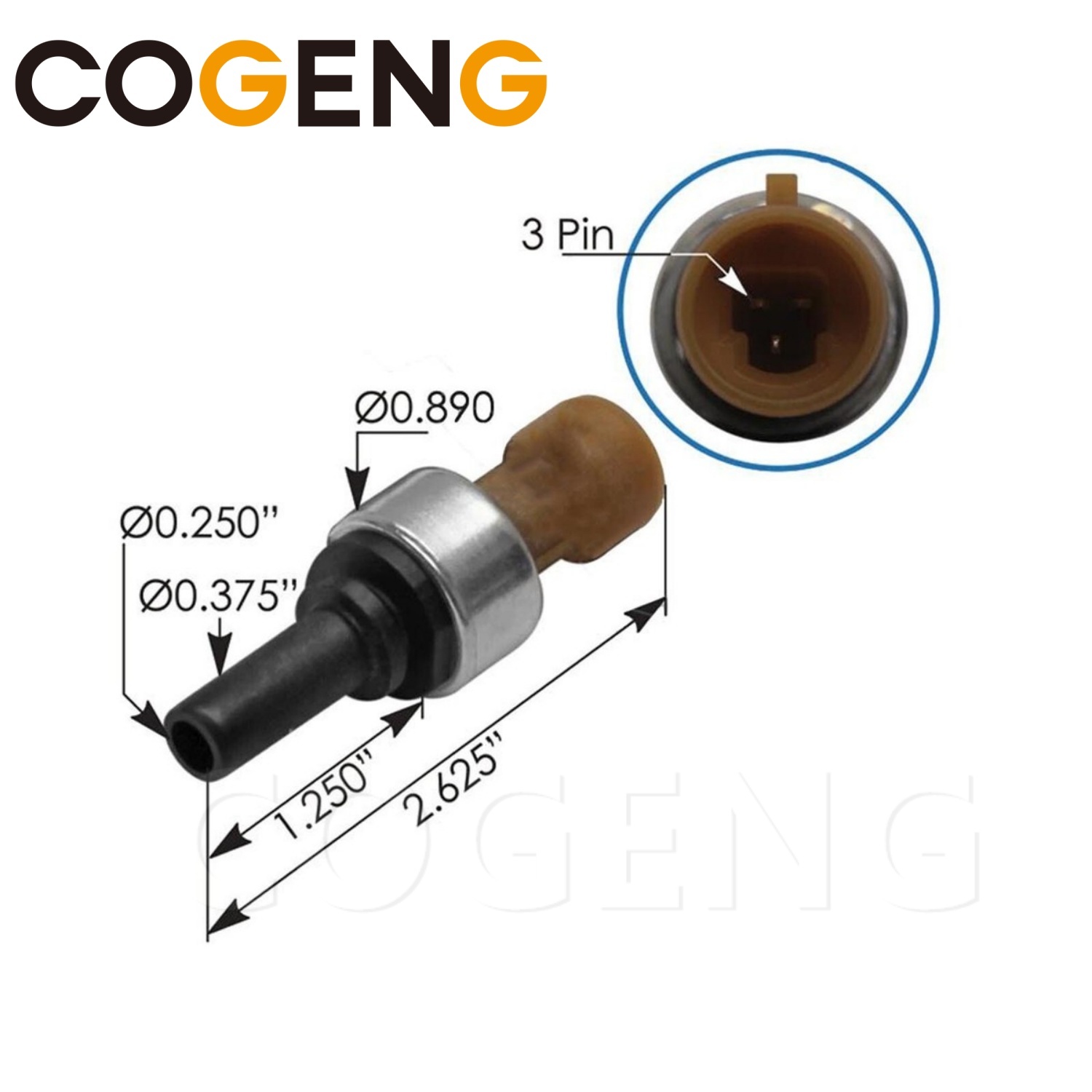

| 7 | — | CG-CONN-VPS-3P | Replacement 3-Pin Wiring Harness Connector Plug with Terminals | 1 (Optional) |
| Engine Model | Displacement | Applications |
|---|---|---|
| D11 | 10.8L (659 cu in) | EC480, EC550 excavators; L150-L220 wheel loaders; A35-A40 haulers |
| D13 | 12.8L (781 cu in) | EC750, EC950 excavators; L250-L350 wheel loaders; A45-A60 haulers |
| D16 | 16.1L (983 cu in) | EC750E, EC950E excavators; L350H wheel loaders; A60H haulers |
| Parameter | Specification |
|---|---|
| Pressure Range | 0 - 2,000 bar (0 - 29,000 psi) |
| Output Signal | 0.5-4.5V analog |
| Function | Common rail fuel pressure monitoring |
| Effect of Failure | Engine derate, hard starting, poor performance |
| Parameter | Specification |
|---|---|
| Pressure Range | 0 - 350 bar (0 - 5,075 psi) |
| Output Signal | 4-20 mA |
| Function | Hydraulic system, brake circuit pressure |
| Effect of Failure | Reduced hydraulic power, machine derate |
| Parameter | Specification |
|---|---|
| Pressure Range | 0 - 10 bar (0 - 145 psi) |
| Output Signal | 0.5-4.5V analog |
| Function | Engine oil pressure monitoring |
| Effect of Failure | False low pressure warnings, engine derate |
| Parameter | Specification |
|---|---|
| Pressure Range | 0 - 50 bar (0 - 725 psi) |
| Output Signal | 4-20 mA |
| Function | Hydraulic pilot circuit pressure |
| Effect of Failure | No pilot pressure, machine dead, no hydraulic function |
| Parameter | Specification |
|---|---|
| Pressure Range | 0 - 4 bar (0 - 58 psi) absolute |
| Output Signal | 0.5-4.5V analog |
| Function | Turbo boost pressure monitoring |
| Effect of Failure | Low power, black smoke, poor fuel economy |
| Pressure (bar) | Pressure (psi) | Output (V) | Condition |
|---|---|---|---|
| 0 | 0 | 0.5 | Engine off |
| 500 | 7,250 | 1.5 | Low pressure |
| 1,000 | 14,500 | 2.5 | Medium pressure |
| 1,500 | 21,750 | 3.5 | High pressure |
| 2,000 | 29,000 | 4.5 | Maximum pressure |
| Pressure (bar) | Pressure (psi) | Output (mA) | Condition |
|---|---|---|---|
| 0 | 0 | 4.0 | No pressure |
| 87.5 | 1,269 | 8.0 | Low pressure |
| 175 | 2,538 | 12.0 | Medium pressure |
| 262.5 | 3,806 | 16.0 | High pressure |
| 350 | 5,075 | 20.0 | Maximum pressure |
| Pressure (bar) | Pressure (psi) | Output (V) | Condition |
|---|---|---|---|
| 0 | 0 | 0.5 | Engine off |
| 2.5 | 36 | 1.5 | Idle pressure |
| 5.0 | 72 | 2.5 | Normal pressure |
| 7.5 | 108 | 3.5 | High pressure |
| 10.0 | 145 | 4.5 | Maximum pressure |
| Pressure (bar) | Pressure (psi) | Output (mA) | Condition |
|---|---|---|---|
| 0 | 0 | 4.0 | No pilot pressure |
| 12.5 | 181 | 8.0 | Low pilot pressure |
| 25 | 363 | 12.0 | Medium pressure |
| 37.5 | 544 | 16.0 | High pressure |
| 50 | 725 | 20.0 | Maximum pressure |
| Pressure (bar abs) | Pressure (psi abs) | Output (V) | Condition |
|---|---|---|---|
| 0 | 0 | 0.5 | Full vacuum |
| 1.0 | 14.5 | 1.5 | Atmospheric (engine off) |
| 2.0 | 29.0 | 2.5 | Low boost |
| 3.0 | 43.5 | 3.5 | Medium boost |
| 4.0 | 58.0 | 4.5 | Maximum boost |
| Feature | Benefit |
|---|---|
| Precision piezoresistive element | Accurate readings (±1-2% FS) |
| Stainless steel diaphragm | Diesel, oil, hydraulic fluid compatible |
| Temperature compensation | Consistent from -40°C to +105°C |
| IP67/IP69K protection | Withstands harsh environments |
| OEM-spec connector | Direct fit to Volvo harness |
| 100% factory tested | Every sensor individually verified |
| Plug-and-play | No calibration required |
✅ ISO 9001:2015 – Quality Management System
✅ RoHS Compliant
✅ REACH Compliant
✅ Meets Volvo OEM Specifications
| Sensor | Failure Symptoms |
|---|---|
| 20824479 (FRP) | Hard starting, engine derate, black smoke, high fuel consumption, P0087/P0088/P0190-P0193 |
| 20476992 (Hydraulic) | Slow/weak hydraulics, machine derate, brake issues |
| 64MT475M (Oil) | Low oil pressure warning, false warnings, P0520-P0523 |
| 20449988 (Pilot) | No pilot pressure, machine dead, no hydraulic function |
| 22443498 (Boost) | Low power, black smoke, poor acceleration, P0236-P0238 |
| Sensor | Torque (Nm) | Torque (ft-lbs) |
|---|---|---|
| 20824479 (FRP) | 20-25 Nm | 15-18 ft-lbs |
| 20476992 (Hydraulic) | 25-35 Nm | 18-26 ft-lbs |
| 64MT475M (Oil) | 15-20 Nm | 11-15 ft-lbs |
| 20449988 (Pilot) | 20-25 Nm | 15-18 ft-lbs |
| 22443498 (Boost) | 15-20 Nm | 11-15 ft-lbs |
Q: What Volvo truck models use this pressure sensor?
A: The COGENG universal pressure sensor is a direct OEM replacement for Volvo part numbers 20476992, 64MT475M, 20824479, 20449988, and 22443498, designed for various Volvo truck models and engines where these sensor part numbers are specified. Common applications include engine oil pressure, fuel pressure, air system pressure, or other critical pressure monitoring circuits. The multiple part numbers represent different supersessions and cross-references. Always verify the correct part number for your specific application against your vehicle's parts manual before ordering.
Q: What is the relationship between these five part numbers?
A: These five part numbers (20476992, 64MT475M, 20824479, 20449988, and 22443498) represent the same or functionally equivalent pressure sensors across different Volvo and Mack truck applications and production periods. Some numbers may be supersessions or updates of earlier versions, while others represent cross-references for the same sensor used in different vehicle systems. The COGENG sensor is designed to be a direct replacement for all five part number references.
