| Parameter | Specification |
|---|---|

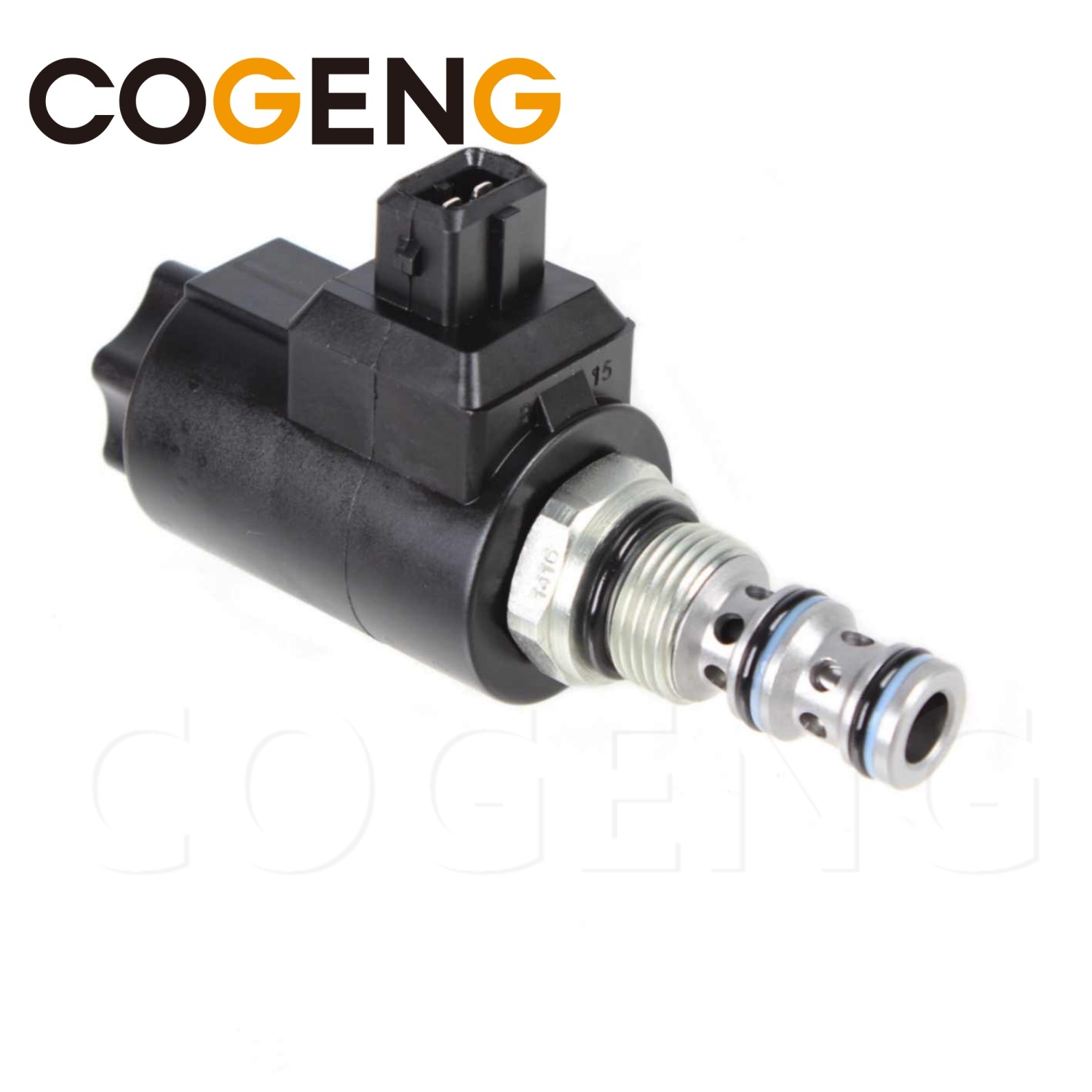

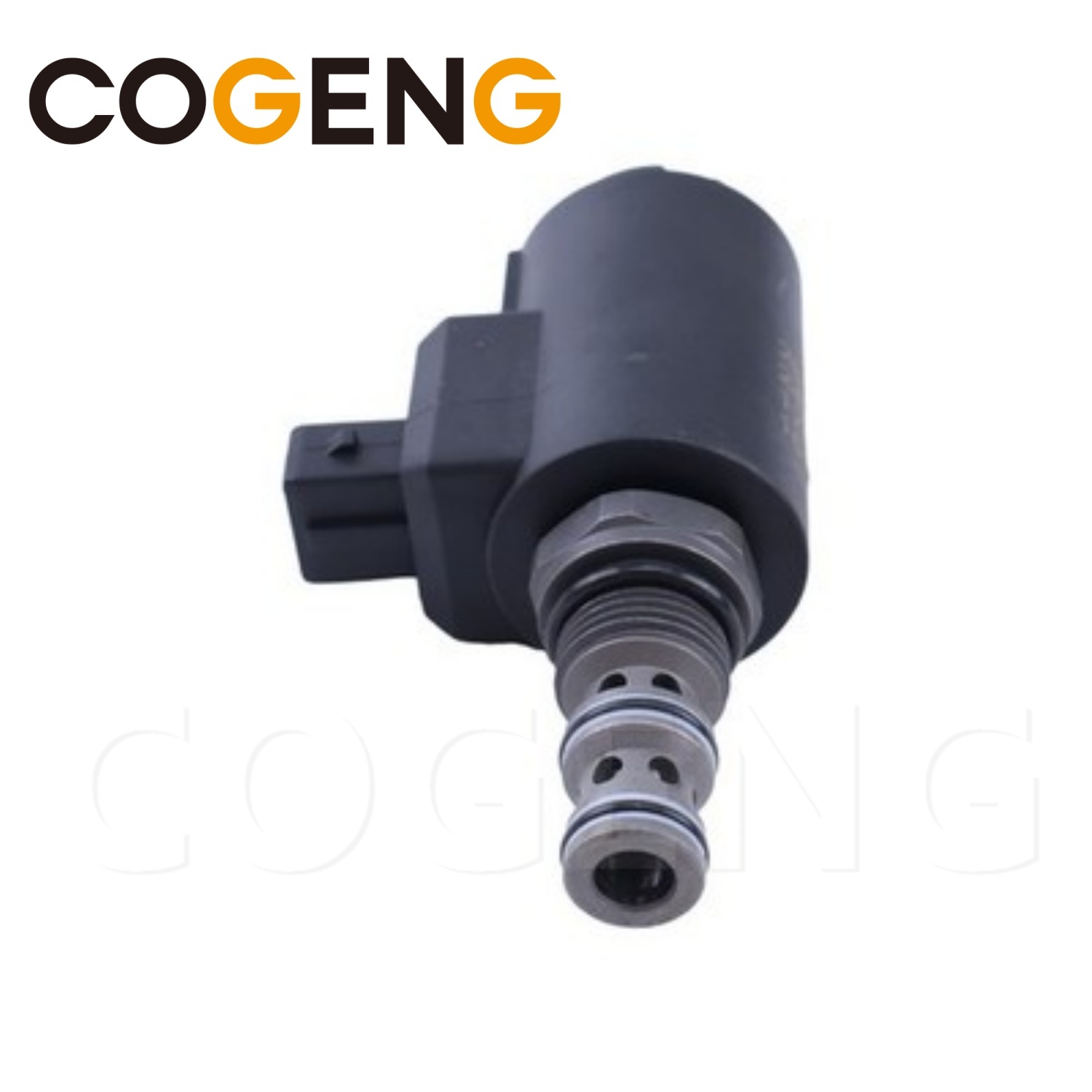

| Product Name | Liebherr Solenoid Valve |
| COGENG Part Numbers | 5615344, 5614032 |
| OEM Equivalent | Liebherr 5615344, Liebherr 5614032 |
| Product Type | Hydraulic Solenoid Valve |
| Voltage | 24V DC (Liebherr standard) |
| Application | Pilot control, attachment switching, swing brake, travel control |
| Compatible Models | Liebherr A924B, A924C, A944B, A944C, 309, 311, 312, 313, 314 |
| Material | Iron + Rubber (seals: NBR / HNBR / FKM) |
| Packing | PP bag inside, carton box outside |
| Place of Origin | Guangdong, China |
| Brand Name | COGENG |
| Certification | ISO9001 |
| Supply Capacity | 500 PCS |
| Brand | Part Number |
|---|---|
| COGENG | 5615344, 5614032 |
| Liebherr | 5615344, 5614032 |
| Interchange | 5615345, 5615346, 5614033, 5614034 |
Decompose pictures
| Reference Number | Part Name | Description & Function |
|---|---|---|
| 1 | Solenoid Coil Assembly | 24V DC electromagnetic coil that generates the magnetic field to shift the spool. |
| 2 | Coil Retaining Nut | Secures the solenoid coil to the valve body. Ensures vibration resistance. |
| 3 | Valve Body | High-strength hydraulic block with precision-machined internal galleries and spool bore. |
| 4 | Control Spool | Hardened steel spool that shifts position to direct hydraulic oil flow. |
| 5 | Centering / Return Spring | Returns the spool to its neutral/fail-safe position when the coil is de-energized. |
| 6 | O-Ring / Seal Kit | Viton/Buna-N seals to prevent external leakage and internal cross-port leakage. |
| 7 | Manual Override Pin | Allows manual actuation of the valve for troubleshooting without electrical power. |
| 8 | DIN Connector Port | Industry-standard electrical interface for the wiring harness plug. |
| Parameter | Specification |
|---|---|
| Voltage Rating | 24V DC |
| Current Draw | 0.6 - 1.2 A @ 24V DC |
| Coil Resistance | 18 - 35 Ω @ 20°C |
| Duty Cycle | 100% continuous rating |
| Insulation Class | Class F (155°C) / Class H (180°C) |
| Protection Rating | IP65 / IP67 / IP69K |
| Electrical Connection | Deutsch DT type (2-pin) or Liebherr OEM |
| Surge Protection | Built-in suppression diode |
| Power Consumption | Approx. 18-28 W |
| Parameter | Specification |
|---|---|
| Valve Type | 3-way / 2-position pilot solenoid |
| Maximum Operating Pressure | 350 bar (5,075 psi) |
| Pilot Pressure Range | 10 - 30 bar (145 - 435 psi) |
| Flow Capacity | Up to 25 L/min (6.6 GPM) |
| Response Time (On) | ≤ 50 ms |
| Response Time (Off) | ≤ 40 ms |
| Leakage (Internal) | ≤ 5 drops/min @ rated pressure |
| Fluid Compatibility | Mineral oil, synthetic hydraulic fluids |
| Parameter | Specification |
|---|---|
| Valve Body Material | High-strength steel / zinc-nickel plated |
| Spool Material | Hardened alloy steel (58-62 HRC) |
| Seal Material | NBR / HNBR / FKM (Viton) |
| Spring Material | Stainless steel |
| Port Thread Size | Liebherr standard pilot line threads |
| Mounting Interface | Liebherr standard / ISO 4401 |
| Weight (each) | 0.40 - 0.60 kg (0.88 - 1.3 lbs) |
| Dimensions (L×W×H) | 65 × 45 × 50 mm (approx.) |
| Parameter | Rating |
|---|---|
| Operating Temperature | -40°C to +90°C (-40°F to +194°F) |
| Storage Temperature | -40°C to +105°C (-40°F to +221°F) |
| Vibration Resistance | 15G @ 50-500Hz |
| Ingress Protection | IP67 / IP69K |
| Corrosion Protection | 500+ hours salt spray |
Parts list
| Item | Part Number (OEM Ref.) | COGENG Ref. | Description | Qty per Kit |
|---|---|---|---|---|
| 1 | 5615344 | CG-5615344 | Solenoid Directional Control Valve (Complete Assembly) | 1 |
| 2 | 5614032 | CG-5614032 | Solenoid Directional Control Valve (Complete Assembly) | 1 |
| 3 | N/A | CG-SEAL-KIT-314 | Seal Kit (O-rings & Backup Rings) for 5615344/5614032 | 1 set |
| 4 | N/A | CG-COIL-24V-314 | Replacement 24V Coil Assembly (includes Nut) | 1 (optional) |
| 5 | N/A | CG-CONN-DIN | DIN 43650 Form A Electrical Connector (Square plug) | 1 (optional) |
| Model | Series | Application |
|---|---|---|
| A924B | B-Series | Pilot control, attachment switching |
| A924C | C-Series | Pilot control, attachment switching |
| A924 | Standard | Pilot control, attachment switching |
| Model | Series | Application |
|---|---|---|
| A944B | B-Series | Pilot control, attachment switching |
| A944C | C-Series | Pilot control, attachment switching |
| A944 | Standard | Pilot control, attachment switching |
| Model | Application |
|---|---|
| 309 | Pilot control, swing brake, travel speed |
| 311 | Pilot control, swing brake, travel speed |
| 312 | Pilot control, swing brake, travel speed |
| 313 | Pilot control, swing brake, travel speed |
| 314 | Pilot control, swing brake, travel speed |
Installation decomposition diagram
| Step | Action | Visual Cue / Component | Torque / Specification |
|---|---|---|---|
| 1 | Preparation | Clean work area; relieve hydraulic pressure | Safety first: Wear gloves and glasses. |
| 2 | Removal | Disconnect the DIN electrical connector | Cable socket attached to Item 8. |
| 3 | Extraction | Unscrew and remove the old valve from the manifold | Use 32mm or 36mm wrench on the valve body hex. |
| 4 | Seal Inspection | Remove old O-rings from the manifold port | Ensure no debris enters the hydraulic system. |
| 5 | Pre-Fitting | Lubricate new O-rings (Item 6) with clean hydraulic oil | Fit seals onto the new COGENG valve (Item 1). |
| 6 | Installation | Screw the new valve into the manifold hand-tight | Then torque to 40-50 Nm (standard recommendation). |
| 7 | Coil Orientation | Verify the solenoid coil (Item 1) can rotate freely | Adjust coil position if needed, then tighten nut (Item 2) to 5-7 Nm. |
| 8 | Connection | Attach the DIN connector (Item 8) and test function | Ensure voltage is 24V DC and function is correct. |
Frequently Asked Questions
| FAQ Topic | Question | Answer |
|---|---|---|
| Compatibility | Will this fit my Liebherr 314? | Yes. Part numbers 5615344 and 5614032 are direct fits for Liebherr 309, 311, 312, 313, and 314 excavator models. |
| Cross-Reference | Are 5615344 and 5614032 different? | They may have slight differences in spool configuration or connector orientation. Please check your machine's serial number or old part to ensure you order the correct COGENG reference. |
| Durability | What makes this a "high flow" durable replacement? | COGENG valves use hardened steel spools and Viton seals. They are tested to meet or exceed OEM flow and pressure ratings, ensuring long service life under demanding cycles. |
| Installation | Is it plug-and-play? | Yes, it is a direct OEM replacement. Just clean the surface, replace the seals, screw it in, and connect the DIN plug. No programming is needed. |
| Troubleshooting | The coil gets hot or the valve buzzes. Is this normal? | A warm coil is normal (continuous duty). Loud buzzing usually indicates dirt in the valve or low voltage (<20V). Check the hydraulic oil cleanliness and battery voltage. |
| Shipping | How fast is "fast shipping"? | Orders placed before 2 PM are typically shipped the same day. We ship globally via DHL/FedEx, with typical delivery in 3-7 business days. |
