| Category | Specification |
|---|---|

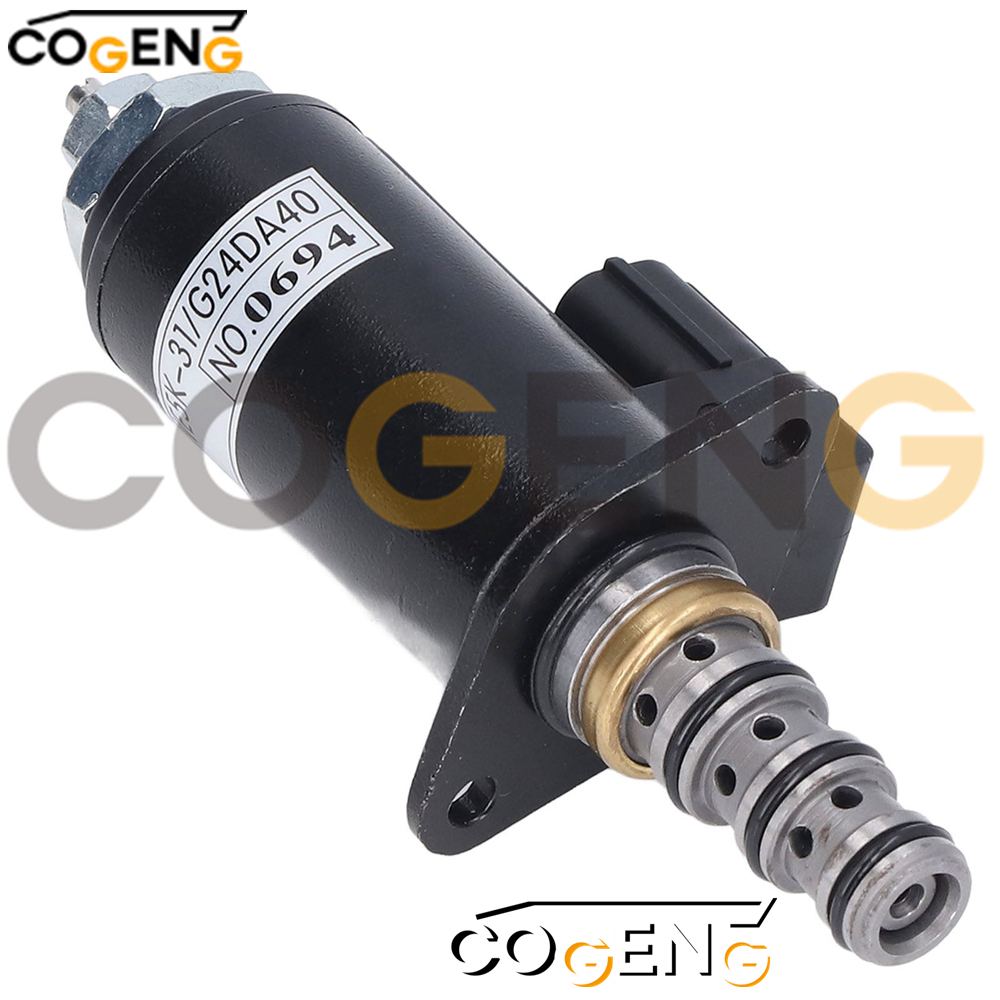

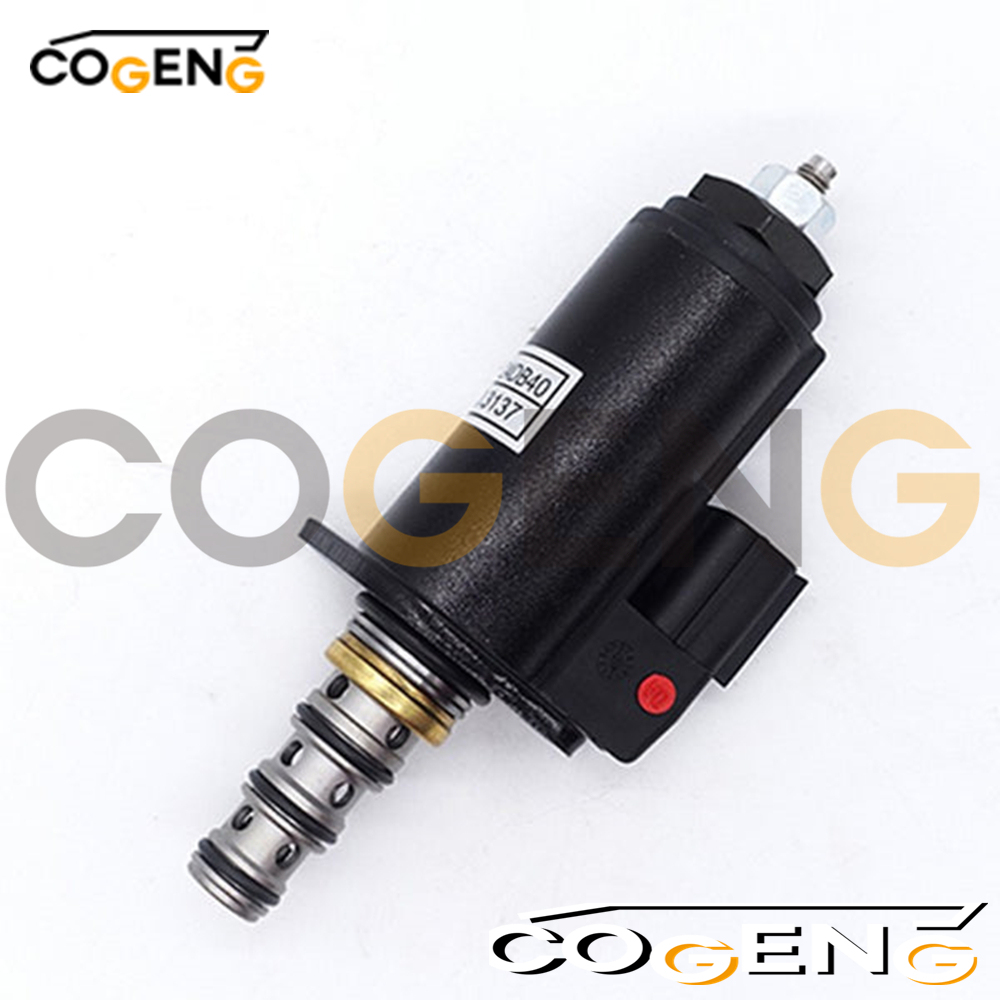

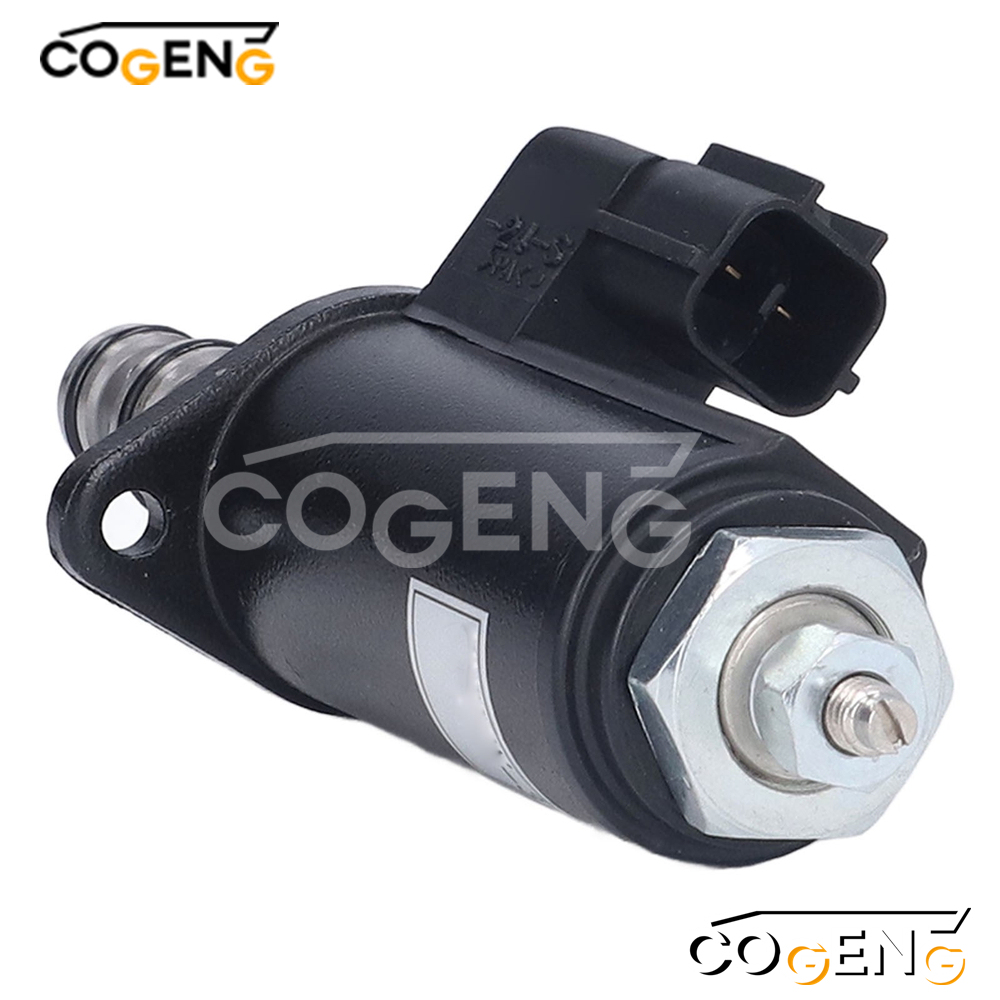

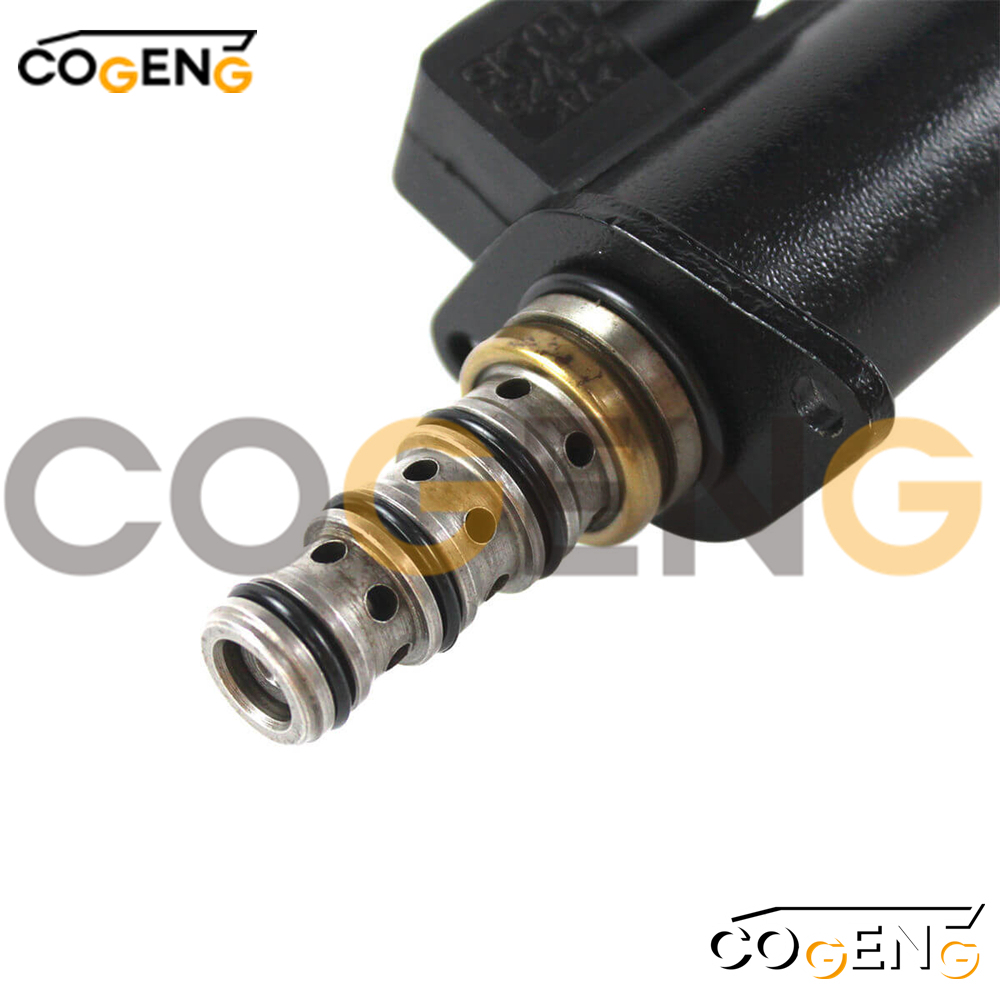

| COGENG Part Number | CG-KOB-YN35V00020F1 |
| OEM Reference | YN35V00020F1 |
| Compatible Models | SK200-6, SK210, SK210LC |
| Valve Series | Kobelco Red Dot |
| Machine Weight Range | 20-21 Ton Excavators |
| Valve Type | High-Pressure Hydraulic Solenoid |
| Maximum Pressure | 350 Bar |
| Response Time | < 40ms |
| Voltage Rating | 12V/24V DC System |
| Coil Insulation | Class H (180°C) |
| Seal Material | High-Pressure NBR |
| Body Material | Heavy-Duty Aluminum Alloy |
| Temperature Range | -30°C to 120°C |
| Quality Validation | 100% High-Pressure Testing |
| Warranty Coverage | 18-Month Limited Warranty |

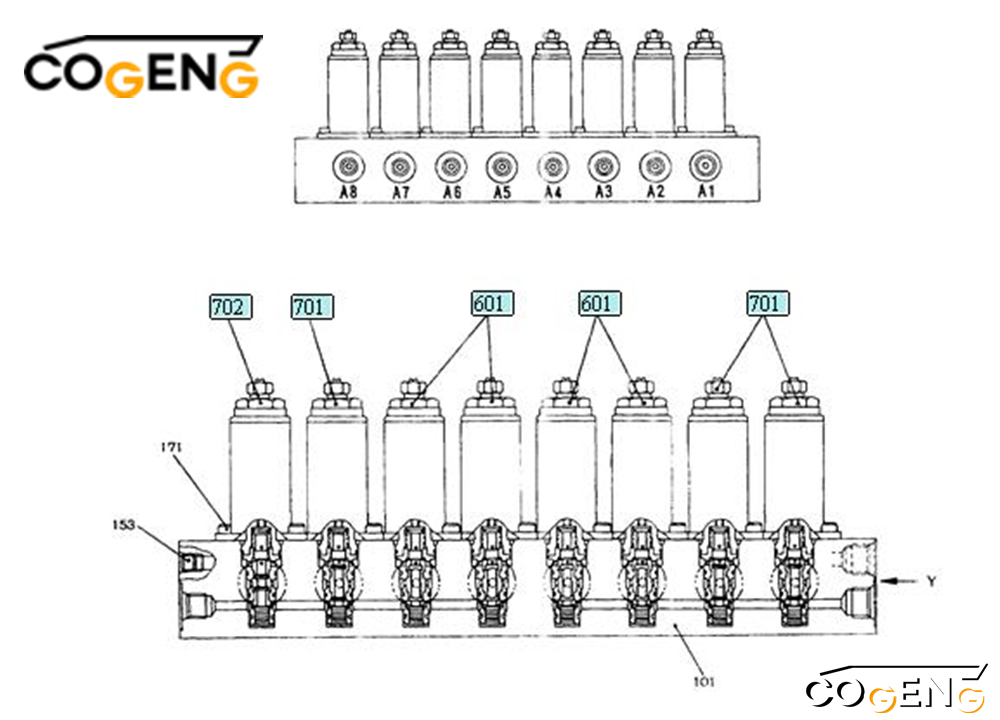

| NO | Number | Name | Qty |
| YN35V00022F1 | SOLENOID VALVE | AR | |
| 101 | YN35V00022S101 | BLOCK CASE | 1 |
| 153 | 2436U1165S152 | PLUG PLUG | 1 |
| 171 | ZS23C05012 | BOLT | 16 |
| 601 | YN35V00019F1 | Solenoid Valve | 4 |
| 701 | YN35V00020F1 | Solenoid Valve | 3 |
| 702 | YN35V00021F1 | Solenoid Valve | 1 |
Complete hydraulic system depressurization required
Clean all high-pressure connection ports to ISO standards
Use high-pressure rated seals and thread compounds
Torque fittings to high-pressure specifications (45-50 Nm)
Pressure test system gradually before full operation
Verify electrical connections for proper voltage supply
